5ST3743

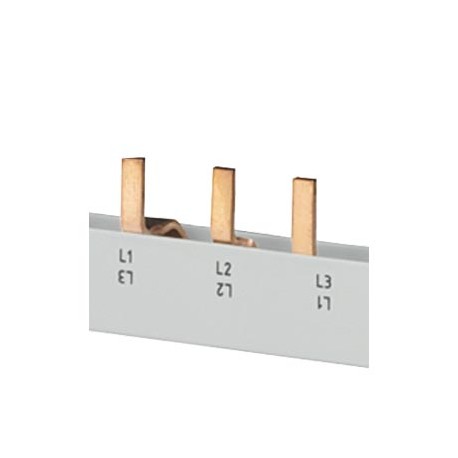

5ST3743 SIEMENS Pin busbar touch-safe, 10 mm2 3x 1-phase+AUX, 214 mm long can be cut, with end caps
$0.00USD
3289 in stock
Key Specifications
:
EAN:4001869313115
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869313115 |
| UPC | Not available |
| ETIM | 5 |
| width | 18 mm |
| eClass | 6 |
| length | 214 mm |
| Group Code | P310 |
| net weight | 74.94 g |
| Confirmation | Miscellaneous |
| Date5/2/2022 | |
| Metal Factor | L-O----- |
| phase number | 1 |
| Product Group | 5506 |
| Product class | D: products made to order / customer's specifications, requiring engineering services, which cannot be re-used or utilized (design to customer) |
| Quantity Unit | 1 Piece |
| cross-section | 10 mm² |
| Commodity Code | 85369001 |
| Product family | 5ST Busbars for Modular Installation Devices |
| Net Weight (kg) | 0,075 Kg |
| Model (EF000010) | Laminated |
| Width (EF000008) | 18.0 |
| Country of origin | Germany |
| Height (EF000040) | 18.5 |
| Length (EF001438) | 214.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Flexible (EF000083) | true |
| Packaging Dimension | 145,00 x 215,00 x 80,00 |
| Product Description | Pin busbar touch-safe, 10 mm2 3x 1-phase+AUX, 214 mm long can be cut, with end caps |
| product designation | Pin busbar |
| design of the product | 10 mm², 3X1PH+AS L214 mm |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Rated current In (EF008250) | 63.0 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / insulated | Yes |
| Package size unit of measure | MM |
| Surface protection (EF000139) | - |
| type of electrical connection | Pin |
| operational current / rated value | 63 A |
| Article Number (Market Facing Number) | 5ST3743 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneousUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
Busbar, spike terminal, fully insulated, for automatic 70mm, 3 x (1 phase + HS), 214mm, 12 mód., 10mm2. Manufactured to customer specifications. Non-Cancelable Non-Returnable.
