5ST3740-2

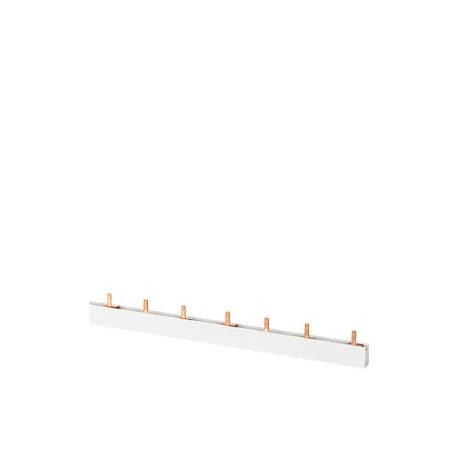

5ST3740-2 SIEMENS Pin busbar, 3-phase 10 mm2, 1060mm, gray insulation can be cut for AFDD 5SM602.-2 for FI/L..
$0.00USD
3233 in stock
Key Specifications
:
EAN:4001869484822
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869484822 |
| UPC | Not available |
| ETIM | 5 |
| width | 14 mm |
| eClass | 6 |
| length | 1 060 mm |
| Group Code | P310 |
| Confirmation | Miscellaneous |
| Metal Factor | L-A----- |
| phase number | 3 |
| Date5/13/2022 | |
| Product Group | 5506 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| cross-section | 10 mm² |
| Commodity Code | 85369001 |
| Product family | 5ST Busbars for Modular Installation Devices |
| Net Weight (kg) | 0,396 Kg |
| Model (EF000010) | Laminated |
| Width (EF000008) | 14.0 |
| Country of origin | Germany |
| Height (EF000040) | 17.0 |
| Length (EF001438) | 1060.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Flexible (EF000083) | true |
| Packaging Dimension | 95,00 x 1100,00 x 95,00 |
| Product Description | Pin busbar, 3-phase 10 mm2, 1060mm, gray insulation can be cut for AFDD 5SM602.-2 for FI/LS 2P (3 MW)+AFDD |
| product designation | Pin busbar |
| design of the product | 3PH 10 mm², 60MW gray |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Rated current In (EF008250) | 63.0 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / insulated | Yes |
| Package size unit of measure | MM |
| Surface protection (EF000139) | - |
| type of electrical connection | Pin |
| operational current / rated value | 63 A |
| Article Number (Market Facing Number) | 5ST3740-2 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2013 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneousUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
PIN COMB, 3 PHASES 10MM2, 1060MM, CUTTABLE GREY INSULATION FOR DIF. COMB. 2P (3M.) + AFDD. Manufactured to order. Non-Cancelable Non-Returnable.
