5ST3716

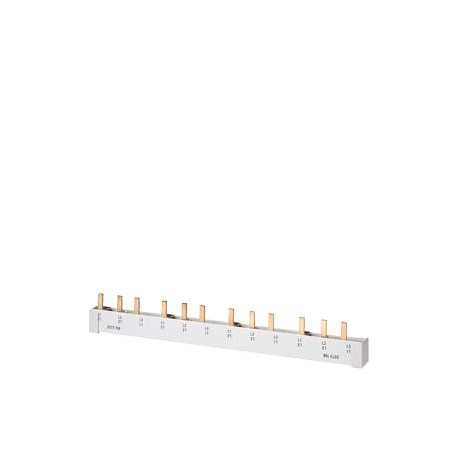

5ST3716 SIEMENS Pin busbar touch-safe, 16 mm2 4-phase, 1016 mm long can be cut, without end caps
$0.00USD
4332 in stock
Key Specifications
:VersionClassificationeClass627-37-13-06eClass7.127-37-13-06eClass827-37-13-06eClass927-37-13-06eClass9.127-37-13-06ETIM5EC000215ETIM6EC000215ETIM7EC000215ETIM8EC000215
EAN:4001869209364
UPC:754554886336
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-13-06eClass7.127-37-13-06eClass827-37-13-06eClass927-37-13-06eClass9.127-37-13-06ETIM5EC000215ETIM6EC000215ETIM7EC000215ETIM8EC000215 | |
| EAN | 4001869209364 |
| UPC | 754554886336 |
| ETIM | 5 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | L-O----- |
| Product Group | 5506 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369001 |
| Product family | 5ST Busbars for Modular Installation Devices |
| Net Weight (kg) | 0,798 Kg |
| Model (EF000010) | Laminated |
| Width (EF000008) | 21.4 |
| Country of origin | Germany |
| Height (EF000040) | 17.3 |
| Length (EF001438) | 1016.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Flexible (EF000083) | true |
| Packaging Dimension | 80,00 x 1020,00 x 80,00 |
| Product Description | Pin busbar touch-safe, 16 mm2 4-phase, 1016 mm long can be cut, without end caps |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : N |
| Rated current In (EF008250) | 80.0 |
| Standard lead time ex-works | 50 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface protection (EF000139) | - |
| Article Number (Market Facing Number) | 5ST3716 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
Cu busbar, without end cap, tenon terminal, for 70mm devices, 18mm pitch, 4 phases, L = 1016mm. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
