In Stock Hot Product
5ST3685-0

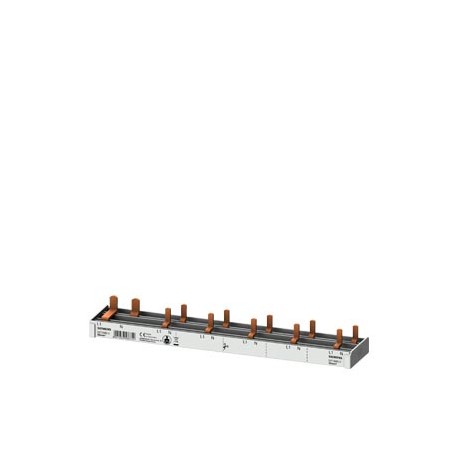

5ST3685-0 SIEMENS compact Pin Busbar, 10mm2 connection: 2p (P & N) 1x RCCB 2-pole + 5x AFDD 5SM6+ compact de..
$0.00USD
3320 in stock
Key Specifications
:
EAN:4001869566740
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869566740 |
| UPC | Not available |
| ETIM | 5 |
| width | 42.4 mm |
| eClass | 6 |
| height | 13.7 mm |
| length | 216.4 mm |
| Group Code | P310 |
| net weight | 94 g |
| Confirmation | Miscellaneous |
| Date5/2/2022 | |
| Metal Factor | --3----- |
| phase number | 1 |
| Product Group | 5506 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| cross-section | 10 mm² |
| Commodity Code | 85369001 |
| Product family | 5ST Busbars for Modular Installation Devices |
| Net Weight (kg) | 0,094 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 100,00 x 220,00 x 110,00 |
| Product Description | compact Pin Busbar, 10mm2 connection: 2p (P & N) 1x RCCB 2-pole + 5x AFDD 5SM6+ compact device 1 MW + auxiliary switch 0.5 MW touch protected 12 MW fixed length |
| product designation | Pin busbar |
| design of the product | 10 mm², 1p+N, 12MW, RCCB 3p+N + 5x AFDD 5SM6 + 5x compact |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 3 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / insulated | Yes |
| suitability for interaction | |
| Package size unit of measure | MM |
| ● devices with N conductor | Yes |
| type of electrical connection | Pin |
| operational current / rated value | 63 A |
| ● devices with auxiliary switch | No |
| Article Number (Market Facing Number) | 5ST3685-0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of devices / suitable for fitting | 6 |
| operating voltage / rated value / maximum | 230 V |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2018 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneousUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
Muddy compact plug, 10 mm2 Connection: 2p (L and N) 1 × FI 2 poles + 5 × AFDD 5SM6 + compact unit 1 pole + auxiliary switch, 0.5 pol. direct contact protection 12 mod., fixed length. Cancelations and
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
