5ST3666-2HG

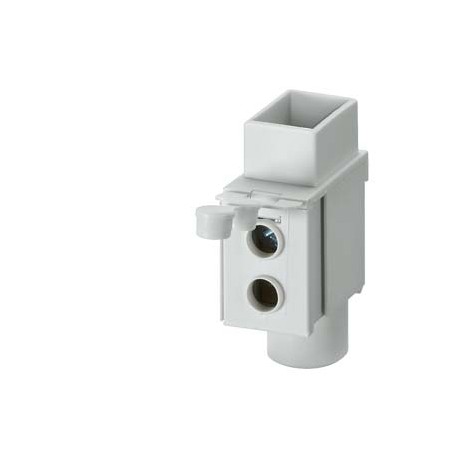

5ST3666-2HG SIEMENS Connecting terminal, 50 mm2 according to UL 489, 480Y/277V for LS 5SJ4...-.HG Infeed bus..
$0.00USD
4985 in stock
Key Specifications
:
EAN:4001869393421
UPC:754554961446
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869393421 |
| UPC | 754554961446 |
| ETIM | 5 |
| width | 17.75 mm |
| eClass | 6 |
| height | 51 mm |
| length | 31.2 mm |
| Group Code | P310 |
| net weight | 33 g |
| accessories | connection terminal |
| ● maximum | 3.5 N·m |
| ● minimum | 2 N·m |
| Confirmation | |
| Date5/6/2022 | |
| Metal Factor | L-O----- |
| Miscellaneous | |
| Product Group | 5507 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,034 Kg |
| Model (EF000010) | Other |
| Width (EF000008) | 18.0 |
| Country of origin | Germany |
| Height (EF000040) | 51.0 |
| Length (EF001438) | 31.0 |
| tightening torque | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Flexible (EF000083) | false |
| Packaging Dimension | 73,00 x 162,00 x 40,00 |
| Product Description | Connecting terminal, 50 mm2 according to UL 489, 480Y/277V for LS 5SJ4...-.HG Infeed busbar |
| product designation | Connecting terminal |
| design of the product | 50 mm², acc. to UL 489, 480Y/277 V for MCBs 5SJ4...-.HG infeed busbar |
| Minimum order quantity | 10 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Rated current In (EF008250) | 115.0 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface protection (EF000139) | - |
| Article Number (Market Facing Number) | 5ST3666-2HG |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| operating voltage / at AC / rated value | 1 000 V |
| operational current / at AC / rated value | 160 A |
| Region Specific PriceGroup / Headquarter Price Group | 14C / 1AE |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2007 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| type of connectable conductor cross-sections / for copper conductor / stranded | 2.5 - 50 mm² |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousUK Declaration of ConformityotherMiscellaneous | General Product Approval |
Product Description
CONNECTION TERMINAL, 50 MM2 ACCORDING UL 489,480Y/277V FOR LS 5SJ4...-. HG FEEDING COLLECTOR BAR ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiply 10 Units ** ). Cancelations and
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
