5ST3057

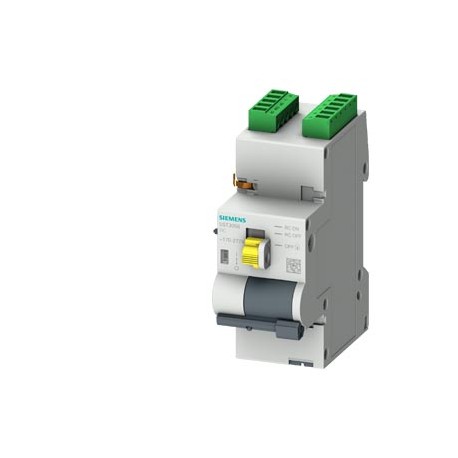

5ST3057 SIEMENS Remote operating mechanism ARD 30 V AC, 48 V DC For CB, residual current operated circuit br..
$0.00USD
4400 in stock
Key Specifications
:
EAN:4001869533506
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869533506 |
| UPC | Not available |
| ETIM | 5 |
| depth | 70 mm |
| width | 36 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| Railway | Dangerous Good |
| Group Code | P310 |
| net weight | 188 g |
| ● maximum | 1.5 mm² |
| ● minimum | 0.5 mm² |
| Confirmation | Miscellaneous |
| Metal Factor | None |
| Date5/13/2022 | |
| Product Group | 5506 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Additional Components |
| Net Weight (kg) | 0,230 Kg |
| ● rated value | 24 V |
| Country of origin | China |
| operating voltage | |
| product component | |
| product extension | Remote operating mechanism ARD |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 112,00 x 112,00 x 90,00 |
| Product Description | Remote operating mechanism ARD 30 V AC, 48 V DC For CB, residual current operated circuit breaker RC blocks, RCBO On/off switch |
| operating frequency | 50/60 Hz |
| product designation | Remote controlled mechanism Power + ARD |
| protection class IP | IP20 |
| ● auxiliary switch | Yes |
| design of the product | Mountable |
| display version / LED | Yes |
| number of CO contacts | 1 |
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● maximum permissible | 55 °C |
| ● minimum permissible | -40 °C |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 24 |
| ● fault signal contact | Yes |
| Device fitting (EF007826) | Universal |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 3 Day/Days |
| Surcharge for Raw Materials | None |
| product feature / interlock | Yes |
| Package size unit of measure | MM |
| type of fault signal contact | 1 CO, 5 A, 250 V AC |
| number of modular width units | 2 |
| Assembly width (TE) (EF003569) | 2 |
| design of the auxiliary switch | 1 CO, 2 A, 250 V AC |
| Additional equipment (EF008146) | Remote drive |
| Rated switch current (EF006706) | - |
| number of fault signal contacts | 1 |
| ● at AC / rated value / maximum | 30 V |
| ● at AC / rated value / minimum | 12 V |
| ● at DC / rated value / maximum | 48 V |
| ● at DC / rated value / minimum | 12 V |
| product extension / can be mounted | Universal |
| Installed at the factory (EF002581) | false |
| connectable conductor cross-section | |
| number of remote reset / per minute | 2 |
| power loss [V∙A] / during standby | 1 W |
| ambient temperature / during storage | |
| type of voltage / of control voltage | AC/DC |
| wire length / in the control circuit | 1 500 m |
| Article Number (Market Facing Number) | 5ST3057 |
| Voltage type for actuating (EF008242) | AC/DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| design of the product / factory mounted | No |
| Number of fault-signal switches (EF007613) | 1 |
| number tests to the automatically resetting | 3 |
| tightening torque / with screw-type terminals | |
| electrical endurance (switching cycles) / typical | 10 000 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| With auto test for earth leakage function (EF008727) | - |
| Number of contacts as normally open contact (EF008256) | 0 |
| Suitable for max. current main contact unit (EF008730) | - |
| Number of contacts as normally closed contact (EF008255) | 0 |
| type of connectable conductor cross-sections / at AWG cables | 14 ... 30 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.02.2017 |
| Suitable for max. number of poles main contact unit (total) (EF008729) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneousUK Declaration of ConformityMiscellaneousRailwayDangerous GoodConfirmationTransport Information | General Product Approval |
Product Description
remote drive ARD 30VAC,48VDC for LS, differential block differential switch, FI/LS switch ON/OFF switch. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
