5ST3043

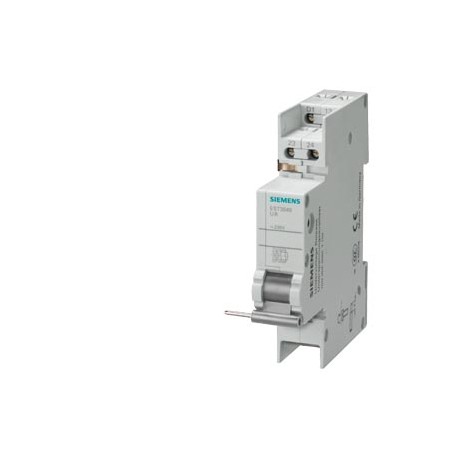

5ST3043 SIEMENS Undervoltage release 230 V AC, with 2 terminals for miniature circuit breaker 5SL4, 5SY, 5SP..
$0.00USD
4946 in stock
Key Specifications
:
EAN:4001869187518
UPC:754554887791
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869187518 |
| UPC | 754554887791 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 70 mm |
| other | Railway |
| UNSPSC | 14 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 102 g |
| Confirmation | Miscellaneous |
| Metal Factor | L-O----- |
| Date5/12/2022 | |
| Miscellaneous | Vibration and Shock |
| Product Group | 5506 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Additional Components |
| Net Weight (kg) | 0,102 Kg |
| ● load switch | No |
| Country of origin | India |
| Delayed (EF001541) | false |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| ● overload relay | No |
| Packaging Dimension | 80,00 x 100,00 x 30,00 |
| Product Description | Undervoltage release 230 V AC, with 2 terminals for miniature circuit breaker 5SL4, 5SY, 5SP RCBO 5SU1, FI 5SV (for 5SU1 handle coupler 5ST3805-1 is required) |
| product designation | Undervoltage release |
| suitability for use | |
| ● circuit breaker | No |
| number of CO contacts | 0 |
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| suitability for integration | |
| ● motor starter protector | No |
| Package size unit of measure | MM |
| type of electrical connection | screw-type terminals |
| Article Number (Market Facing Number) | 5ST3043 |
| Voltage type for actuating (EF008242) | AC |
| Suitable for overload relay (EF001545) | false |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Suitable for off-load switch (EF001543) | false |
| Suitable for motor safety switch (EF005826) | false |
| ● at AC / at 50 Hz / rated value / maximum | 230 V |
| ● at AC / at 50 Hz / rated value / minimum | 230 V |
| ● at AC / at 60 Hz / rated value / maximum | 230 V |
| ● at AC / at 60 Hz / rated value / minimum | 230 V |
| Suitable for power circuit breaker (EF005863) | false |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| switching function / ON-delay/instantaneous contact | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['230.0', '230.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['230.0', '230.0'] |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| type of voltage / of the operating voltage / for actuation | AC |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneousUK Declaration of ConformityEnvironmental ConfirmationsotherRailwayMiscellaneousVibration and ShockConfirmation | General Product Approval |
