5ST3020

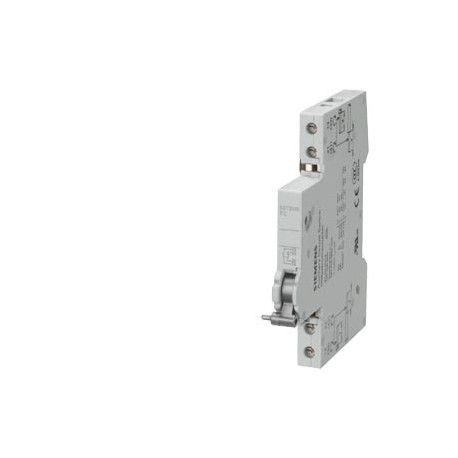

5ST3020 SIEMENS Fault signal contact 1 NO+1 NC, for miniature circuit breaker 5SL, 5SY, 5SP RCBO 5SU1, FI 5S..
$0.00USD
4464 in stock
Key Specifications
:Confirmation
EAN:4001869187433
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869187433 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 70 mm |
| width | 9 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| standard | IEC/EN60947-5-1; IEC/EN62019 |
| Group Code | P310 |
| net weight | 56 g |
| ● maximum | 2.5 mm² |
| ● minimum | 12 V |
| Date5/5/2022 | |
| Metal Factor | L-O----- |
| Product Group | 5506 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Additional Components |
| Net Weight (kg) | 0,065 Kg |
| ● rated value | 400 V |
| Country of origin | India |
| operating voltage | |
| product component | |
| product extension | Fault signal contact |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 82,00 x 92,00 x 18,00 |
| Product Description | Fault signal contact 1 NO+1 NC, for miniature circuit breaker 5SL, 5SY, 5SP RCBO 5SU1, FI 5SV (for 5SU1 handle coupler 5ST3805-1 is required) |
| Vibration and Shock | Confirmation |
| operating frequency | 50/60 Hz |
| product designation | Fault signal contact |
| protection class IP | IP20 |
| design of the product | Mountable |
| number of CO contacts | 0 |
| number of NC contacts | 1 |
| number of NO contacts | 1 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● maximum permissible | 75 °C |
| ● minimum permissible | -40 °C |
| Rated voltage (EF000228) | - |
| ● fault signal contact | Yes |
| Declaration of Conformity | Test Certificates |
| Device fitting (EF007826) | Earth leakage circuit breaker and miniature circuit breaker (MCB) |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| UK Declaration of Conformity | |
| number of modular width units | 0.5 |
| Assembly width (TE) (EF003569) | 0.5 |
| Additional equipment (EF008146) | Auxiliary switch / fault-signal switch |
| Rated switch current (EF006706) | - |
| number of fault signal contacts | 1 |
| insulation voltage / rated value | 440 V |
| ● at AC / rated value / minimum | 12 V |
| ● at DC / rated value / minimum | 12 V |
| product extension / can be mounted | Universal |
| Installed at the factory (EF002581) | false |
| connectable conductor cross-section | |
| ambient temperature / during storage | |
| supply voltage / at DC / rated value | |
| type of voltage / of control voltage | AC/DC |
| Article Number (Market Facing Number) | 5ST3020 |
| Voltage type for actuating (EF008242) | AC/DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 4 kV |
| design of the product / factory mounted | No |
| Number of fault-signal switches (EF007613) | 1 |
| tightening torque / with screw-type terminals | |
| electrical endurance (switching cycles) / typical | 10 000 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| With auto test for earth leakage function (EF008727) | - |
| Number of contacts as normally open contact (EF008256) | 1 |
| Suitable for max. current main contact unit (EF008730) | - |
| Number of contacts as normally closed contact (EF008255) | 1 |
| type of connectable conductor cross-sections / at AWG cables | 24 ... 12 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| Suitable for max. number of poles main contact unit (total) (EF008729) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalConfirmationMiscellaneousDeclaration of ConformityTest CertificatesMarine / ShippingotherUK Declaration of ConformityMiscellaneousMiscellaneousRailwayVibration and ShockConfirmation | General Product Approval |
