In Stock Hot Product
5ST3016

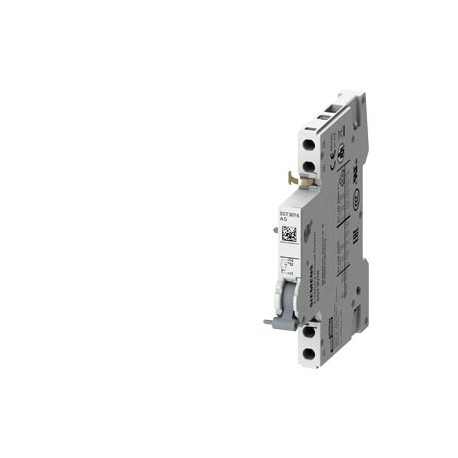

5ST3016 SIEMENS Auxiliary current switch 1 CO For MCB 5SL, 5SY, 5SP Incorporated switch 5TL1 RCBO 5SU1, RC 5..
$0.00USD
3195 in stock
Key Specifications
:Confirmation
EAN:4001869552613
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869552613 |
| UPC | Not available |
| ETIM | 5 |
| depth | 70 mm |
| width | 9 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| standard | IEC/EN60947-5-1; IEC/EN62019 |
| Group Code | P310 |
| net weight | 51 g |
| ● maximum | 2.5 mm² |
| ● minimum | 5 V |
| Metal Factor | None |
| Date5/15/2022 | |
| Product Group | 5506 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Additional Components |
| Net Weight (kg) | 0,051 Kg |
| ● rated value | 30 V |
| Country of origin | India |
| operating voltage | |
| product component | |
| product extension | auxiliary switch |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 79,00 x 92,00 x 19,00 |
| Product Description | Auxiliary current switch 1 CO For MCB 5SL, 5SY, 5SP Incorporated switch 5TL1 RCBO 5SU1, RC 5SV |
| Vibration and Shock | |
| operating frequency | 50/60 Hz |
| product designation | Auxiliary current switch |
| protection class IP | IP20 |
| ● auxiliary switch | Yes |
| design of the product | Mountable |
| number of CO contacts | 1 |
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● maximum permissible | 75 °C |
| ● minimum permissible | -40 °C |
| Declaration of Conformity | Marine / Shipping |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| number of modular width units | 0.5 |
| number of fault signal contacts | 0 |
| insulation voltage / rated value | 440 V |
| ● at DC / rated value / minimum | 5 V |
| product extension / can be mounted | Universal |
| connectable conductor cross-section | |
| ambient temperature / during storage | |
| supply voltage / at DC / rated value | |
| type of voltage / of control voltage | AC/DC |
| Article Number (Market Facing Number) | 5ST3016 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 4 kV |
| design of the product / factory mounted | No |
| tightening torque / with screw-type terminals | |
| electrical endurance (switching cycles) / typical | 10 000 |
| Region Specific PriceGroup / Headquarter Price Group | 11E / 1AD |
| product function / test function for fault current trip | No |
| type of connectable conductor cross-sections / at AWG cables | 24 ... 12 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalConfirmationMiscellaneousDeclaration of ConformityMarine / ShippingotherRailwayUK Declaration of ConformityMiscellaneousConfirmationRailwayVibration and Shock | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
