5ST3015

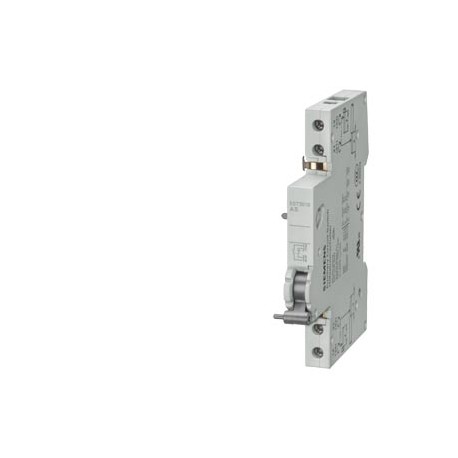

5ST3015 SIEMENS Auxiliary current switch low power rating, 2 NC for miniature circuit breaker 5SL, 5SY, 5SP ..
$0.00USD
4697 in stock
Key Specifications
:
EAN:4001869272801
UPC:754554902579
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869272801 |
| UPC | 754554902579 |
| ETIM | 5 |
| depth | 70 mm |
| width | 9 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| net weight | 64 g |
| ● maximum | 2.5 mm² |
| ● minimum | 5 V |
| Confirmation | |
| Date5/9/2022 | |
| Metal Factor | L-O----- |
| Product Group | 5506 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365019 |
| Product family | Additional Components |
| Net Weight (kg) | 0,0642 Kg |
| ● rated value | 30 V |
| Country of origin | India |
| operating voltage | |
| product component | |
| product extension | auxiliary switch |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 82,00 x 92,00 x 18,00 |
| Product Description | Auxiliary current switch low power rating, 2 NC for miniature circuit breaker 5SL, 5SY, 5SP Incorporated switch 5TL1, RCBO 5SU1, FI 5SV (for 5SU1 handle coupler 5ST3805-1 is required) |
| product designation | Auxiliary current switch |
| protection class IP | IP20 |
| ● auxiliary switch | Yes |
| design of the product | Mountable |
| number of CO contacts | 0 |
| number of NC contacts | 2 |
| number of NO contacts | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● maximum permissible | 75 °C |
| ● minimum permissible | -40 °C |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | - |
| Declaration of Conformity | Marine / Shipping |
| Device fitting (EF007826) | Earth leakage circuit breaker and miniature circuit breaker (MCB) |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 55 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| UK Declaration of Conformity | |
| number of modular width units | 0.5 |
| Assembly width (TE) (EF003569) | 0.5 |
| Additional equipment (EF008146) | Auxiliary switch |
| Rated switch current (EF006706) | - |
| number of fault signal contacts | 0 |
| insulation voltage / rated value | 50 V |
| ● at DC / rated value / minimum | 5 V |
| product extension / can be mounted | Universal |
| Installed at the factory (EF002581) | false |
| connectable conductor cross-section | |
| ambient temperature / during storage | |
| supply voltage / at DC / rated value | |
| type of voltage / of control voltage | DC |
| Article Number (Market Facing Number) | 5ST3015 |
| Voltage type for actuating (EF008242) | AC/DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge voltage resistance / rated value | 0.8 kV |
| design of the product / factory mounted | No |
| switching capacity current / rated value | 0 A |
| Number of fault-signal switches (EF007613) | 0 |
| tightening torque / with screw-type terminals | |
| electrical endurance (switching cycles) / typical | 10 000 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| With auto test for earth leakage function (EF008727) | - |
| Number of contacts as normally open contact (EF008256) | 0 |
| Suitable for max. current main contact unit (EF008730) | - |
| Number of contacts as normally closed contact (EF008255) | 2 |
| type of connectable conductor cross-sections / at AWG cables | 24 ... 12 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| Suitable for max. number of poles main contact unit (total) (EF008729) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationMiscellaneousDeclaration of ConformityMarine / ShippingotherRailwayUK Declaration of ConformityMiscellaneousConfirmationVibration and Shock | General Product Approval |
Product Description
Auxiliary contacts (AS) p/automatic 5SY and 5SP4, 0.5 mode, 2NC, p/small powers. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
