In Stock Hot Product
5ST3012-2

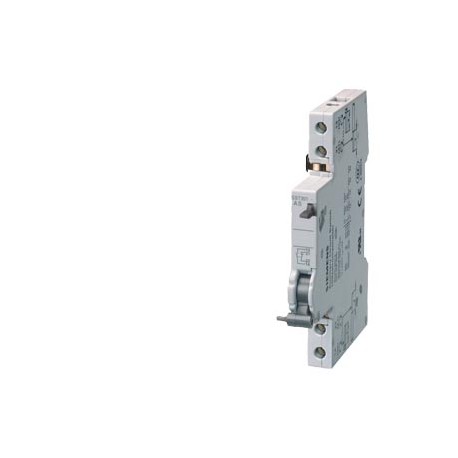

5ST3012-2 SIEMENS AUXILIARY CIRCUIT SWITCH 2NC, FOR MCB WITH TEST BUTTON
$0.00USD
4206 in stock
Key Specifications
:
EAN:4001869395630
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869395630 |
| UPC | Not available |
| ETIM | 5 |
| depth | 70 mm |
| width | 9 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| standard | IEC/EN60947-5-1; IEC/EN62019; GB14048.5 |
| Group Code | P310 |
| net weight | 71 g |
| ● maximum | 2.5 mm² |
| ● minimum | 0.5 mm² |
| Confirmation | Miscellaneous |
| Date5/6/2022 | |
| Metal Factor | L-O----- |
| Product Group | 5506 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Additional Components |
| Net Weight (kg) | 0,071 Kg |
| Country of origin | China |
| product component | |
| product extension | auxiliary switch |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 18,00 x 90,00 x 80,00 |
| Product Description | AUXILIARY CIRCUIT SWITCH 2NC, FOR MCB WITH TEST BUTTON |
| Vibration and Shock | |
| operating frequency | 50/60 Hz |
| product designation | Auxiliary current switch |
| protection class IP | IP20 |
| ● auxiliary switch | Yes |
| design of the product | Mountable |
| number of CO contacts | 0 |
| number of NC contacts | 2 |
| number of NO contacts | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● maximum permissible | 75 °C |
| ● minimum permissible | -40 °C |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | - |
| Device fitting (EF007826) | Earth leakage circuit breaker and miniature circuit breaker (MCB) |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| number of modular width units | 0.5 |
| Assembly width (TE) (EF003569) | 0.5 |
| Additional equipment (EF008146) | Auxiliary switch |
| Rated switch current (EF006706) | - |
| number of fault signal contacts | 0 |
| product extension / can be mounted | Universal |
| Installed at the factory (EF002581) | false |
| connectable conductor cross-section | |
| ambient temperature / during storage | |
| type of voltage / of control voltage | AC/DC |
| Article Number (Market Facing Number) | 5ST3012-2 |
| Voltage type for actuating (EF008242) | AC/DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| design of the product / factory mounted | No |
| Number of fault-signal switches (EF007613) | 0 |
| tightening torque / with screw-type terminals | |
| electrical endurance (switching cycles) / typical | 10 000 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| With auto test for earth leakage function (EF008727) | - |
| Number of contacts as normally open contact (EF008256) | 0 |
| Suitable for max. current main contact unit (EF008730) | - |
| Number of contacts as normally closed contact (EF008255) | 2 |
| type of connectable conductor cross-sections / at AWG cables | 24 ... 12 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2009 |
| Suitable for max. number of poles main contact unit (total) (EF008729) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneousUK Declaration of ConformityMiscellaneousRailwayVibration and Shock | General Product Approval |
Product Description
2 NC AUXILIARY CURRENT SWITCH, FOR MAGNETOTHERMAL AUTOMATION WITH CHECK KEY. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
