5ST2191

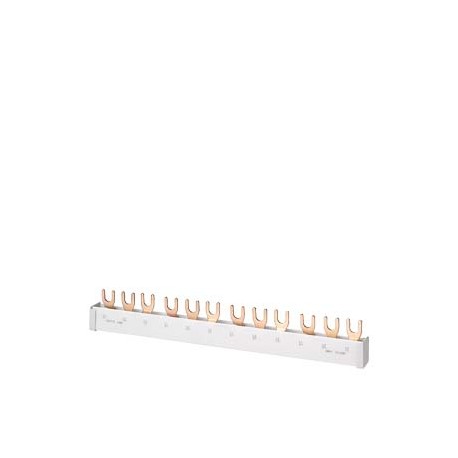

5ST2191 SIEMENS Fork-type busbar touch-safe, 2-phase 16 mm2, 56 MW
$0.00USD
3146 in stock
Key Specifications
:
EAN:4001869304540
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869304540 |
| UPC | Not available |
| ETIM | 5 |
| width | 15.1 mm |
| UNSPSC | 15 |
| eClass | 6 |
| length | 1 000 mm |
| Group Code | P310 |
| Confirmation | Miscellaneous |
| Metal Factor | L-O----- |
| Date5/11/2022 | |
| Miscellaneous | |
| Product Group | 5506 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| busbar design | laminated |
| Commodity Code | 85369001 |
| Product family | SENTRON Busbar Systems |
| Net Weight (kg) | 0,448 Kg |
| Model (EF000010) | Laminated |
| Width (EF000008) | 15.1 |
| Country of origin | Germany |
| Height (EF000040) | 15.0 |
| Length (EF001438) | 1000.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Flexible (EF000083) | true |
| Packaging Dimension | 90,00 x 1025,00 x 80,00 |
| Product Description | Fork-type busbar touch-safe, 2-phase 16 mm2, 56 MW |
| product designation | Fork-type busbar |
| design of the product | 2PH 16mm² 56MW |
| thickness / of busbar | 15 mm |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| material / of the busbar | SF-Cu F 24 |
| Export Control Regulations | AL : N / ECCN : N |
| product feature / flexible | Yes |
| Rated current In (EF008250) | 120.0 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface protection (EF000139) | - |
| surface processing / tin-plated | No |
| operational current / rated value | 120 A |
| Article Number (Market Facing Number) | 5ST2191 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 12E / 1AD |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneousUK Declaration of ConformityEnvironmental ConfirmationsotherMiscellaneous | General Product Approval |
Product Description
Bus bar, fork terminal, isolated, p/D01, 2 phases, 1000mm, 56 mode, 16mm2 (120A). Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
