5SP4191-6

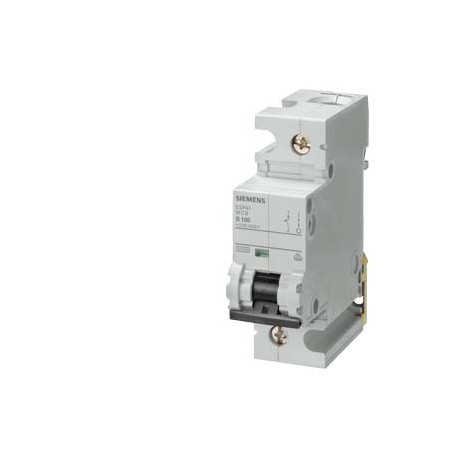

5SP4191-6 SIEMENS Miniature circuit breaker 230/400 V 10kA, 1-pole, B, 100 A, D 70 mm
$0.00USD
4205 in stock
Key Specifications
:Confirmation
EAN:4001869195032
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869195032 |
| UPC | Not available |
| ETIM | 5 |
| depth | 76 mm |
| width | 27 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 90 mm |
| Railway | Dangerous Good |
| Group Code | P310 |
| net weight | 269 g |
| ● maximum | 50 mm² |
| ● minimum | 25 mm² |
| Confirmation | Transport Information |
| Date5/9/2022 | |
| Metal Factor | L-O----- |
| ● sealable | Yes |
| Product Group | 5504 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362090 |
| Product family | Basic Devices |
| reference code | |
| Net Weight (kg) | 0,265 Kg |
| number of poles | 1 |
| product feature | |
| fastening method | DIN rail and screw fixing |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| Country of origin | Greece |
| mounting position | any |
| product component | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 81,00 x 96,00 x 33,00 |
| Product Description | Miniature circuit breaker 230/400 V 10kA, 1-pole, B, 100 A, D=70 mm |
| degree of pollution | 3 |
| operational current | |
| product designation | Miniature circuit breaker |
| protection class IP | IP20 with connected conductors, IP40 in the area of the handle with distribution cover |
| Frequency (EF000416) | ['50.0', '50.0'] |
| overvoltage category | 3 |
| design of the product | 5SP Miniature circuit breakers |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| insulation voltage (Ui) | |
| ● at AC / rated value | 440 V |
| Rated current (EF000227) | 100 |
| Rated voltage (EF000228) | 400 |
| ● tunnel terminals top | Yes |
| Built-in depth (EF000218) | 70.0 |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| switching capacity current | |
| Pollution degree (EF002570) | 3 |
| Standard lead time ex-works | 15 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | F |
| ● at 30 °C / rated value | 100 A |
| ● at 40 °C / rated value | 92.5 A |
| ● at 45 °C / rated value | 89 A |
| ● at 50 °C / rated value | 85 A |
| ● at 55 °C / rated value | 81 A |
| ● at 60 °C / rated value | 77 A |
| ● tunnel terminals bottom | Yes |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | FC |
| number of modular width units | 1.5 |
| tripping characteristic class | B |
| position / of power supply cord | Any |
| Over voltage category (EF002569) | 3 |
| Current limiting class (EF002568) | - |
| Release characteristic (EF000889) | B |
| Number of poles (total) (EF008618) | 1 |
| product feature / touch protection | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of protected poles (EF005548) | 1P |
| ambient temperature / during storage | |
| supply voltage / at AC / rated value | 400 V |
| Article Number (Market Facing Number) | 5SP4191-6 |
| Rated insulation voltage Ui (EF001366) | 440 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● according to EN 60898 / rated value | 10 kA |
| Additional equipment possible (EF008148) | true |
| influence of the surrounding temperature | Max. 95% rel. humidity |
| type of voltage / of the operating voltage | AC |
| Concurrently switching N-neutral (EF005997) | false |
| connectable conductor cross-section / solid | |
| tightening torque / with screw-type terminals | |
| Width in number of modular spacings (EF002950) | 1.5 |
| connectable conductor cross-section / stranded | |
| shock resistance / according to IEC 60068-2-27 | 150m/s² at 11ms half-sine |
| Ambient temperature during operating (EF007515) | ['-25', '55'] |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| vibration resistance / according to IEC 60068-2-6 | 50m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
| Suitable for flush-mounted installation (EF006573) | false |
| Region Specific PriceGroup / Headquarter Price Group | 11A / 1AB |
| mechanical service life (switching cycles) / typical | 10 000 |
| ● with multi-phase operation / at AC / rated value | 440 V |
| ● with single-phase operation / at AC / rated value | 250 V |
| product extension / installable / supplementary devices | Yes |
| tightening torque [lbf·in] / with screw-type terminals | |
| AWG number / as coded connectable conductor cross section | |
| Connectable conductor cross section solid-core (EF007337) | ['25.0', '50.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['25.0', '50.0'] |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | 10.0 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | 10.0 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Tris(4-nonylphenyl, branc... > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with greater than or equal to 0.1% w/w of 4-nonylphenol, branched and linear (4-NP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | - |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | - |
| connectable conductor cross-section / finely stranded / with core end processing | |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 8 W |
| General Product ApprovalConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingotherUK Declaration of ConformitySpecial Test CertificateMiscellaneousRailwayDangerous GoodConfirmationTransport Information | General Product Approval |
Product Description
Circuit breaker, 70mm, accessory, 10kA, curve B, 1.5mód., 1 pole, 100A. Cancelations and returns limited. Consult conditions.
