5SP3791-1

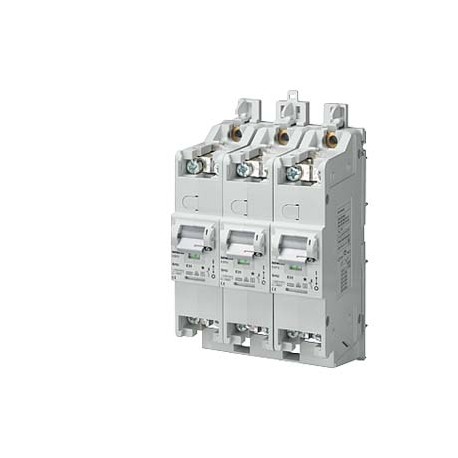

5SP3791-1 SIEMENS Main miniature circuit breaker (SHU), selective, 3x 1-pole, 100 A Pre-assembled on SHU ada..
$0.00USD
4463 in stock
Key Specifications
:Value
EAN:4001869251769
UPC:Not available
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869251769 |
| UPC | Not available |
| ETIM | 4 |
| Notes | Sucessor:Further information about local contact: www.siemens.com/lowvoltage/contact |
| eClass | 6 |
| Group Code | P310 |
| net weight | 1 689 g |
| Price Group | 12D |
| ● maximum | 440 V |
| ● minimum | 110 V |
| Metal Factor | L-O----- |
| ● sealable | Yes |
| Mounting type | standard rail |
| Product Group | 5508 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Set |
| Commodity Code | 85362090 |
| Product family | Basic Devices |
| Net Weight (kg) | 1,857 Kg |
| Product feature | |
| number of poles | 3 |
| ● rated value | 25 kA |
| Shock resistance | 30 g, at least 3 impacts, impact duration 11 ms |
| Country of origin | Czech Republic |
| Product component | |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product phase-out since: 30.04.2020 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Ambient temperature | |
| Degree of pollution | 3 |
| Packaging Dimension | 110,00 x 200,00 x 130,00 |
| Product Description | Main miniature circuit breaker (SHU), selective, 3x 1-pole, 100 A Pre-assembled on SHU adapter 5ST1324 and 3 enclosed locking caps 5ST1323 |
| Product designation | Miniature circuit breaker |
| Protection class IP | IP20, with connected conductors |
| Frequency (EF000034) | 50 |
| overvoltage category | IV |
| ● saddle terminals | Yes |
| Design of the product | Main miniature circuit breaker |
| number of width units | 6 |
| Number of poles / Note | 3P |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Rated current (EF000227) | 100 |
| Rated voltage (EF000228) | 400 |
| circuit-breaker / Design | 5SP3 |
| depth / of the enclosure | 92 mm |
| Suitability for operation | Residential buildings/infrastructure |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| Number of poles (EF001391) | 3 |
| Switching capacity current | |
| Pollution degree (EF002570) | 3 |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Tripping characteristic class | E |
| Product Dimensions (W x L x H) | Not available |
| Operating voltage / rated value | |
| Position / of power supply cord | Any |
| Insulation voltage / rated value | 690 V |
| Over voltage category (EF002569) | 4 |
| Release characteristic (EF000889) | E |
| ● acc. to EN 60898 / rated value | 25 kA |
| Rated switching capacity (EF002563) | 25.0 |
| Ambient temperature / during storage | |
| Degree of protection (IP) (EF005474) | IP20 |
| Supply voltage / at AC / rated value | 400 V |
| Article Number (Market Facing Number) | 5SP3791-1 |
| Rated insulation voltage Ui (EF001366) | 690 |
| Supply voltage frequency / rated value | 50 Hz |
| Surge voltage resistance / rated value | 6 kV |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating current / at AC / rated value | 100 A |
| Mounting type / other installation / Note | With accessories on 35 mm standard mounting rail or busbar or screw fixing |
| Concurrently switching N-neutral (EF005997) | false |
| connectable conductor cross-section / solid | |
| ● Reference code / acc. to DIN EN 81346-2 | F |
| ● reference code / acc. to DIN EN 61346-2 | F |
| Rated surge voltage invariability (EF002578) | 6.0 |
| Vibration resistance / acc. to IEC 60068-2-6 | 2 g, 20 frequency cycles 5 to 150 to 15 Hz |
| Connectable conductor cross-section / stranded | |
| Display version / for switch position indicator | OFF = green, ON = red |
| Mechanical service life (switching cycles) / typical | 20 000 |
| Construction size (according to DIN 43880) (EF002565) | - |
| ● Properties for main switches in accordance with EN 60204-1 | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| connectable conductor cross-section / finely stranded / with core end processing | |
| Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 14.4 W |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
