5SP3716-2

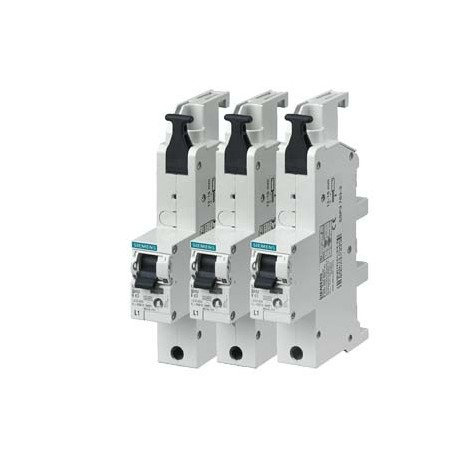

5SP3716-2 SIEMENS Main miniature circuit breaker (SHU), 1-pole, E 16A, 230/400 V (block with L1, L2, L3)
$0.00USD
3222 in stock
Key Specifications
:
EAN:4001869315003
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869315003 |
| UPC | Not available |
| ETIM | 5 |
| depth | 89.5 mm |
| eClass | 6 |
| height | 151.3 mm |
| Group Code | P310 |
| net weight | 1 270 g |
| ● maximum | 440 V |
| ● minimum | 110 V |
| Confirmation | |
| Metal Factor | L-O----- |
| ● sealable | Yes |
| Date5/11/2022 | |
| Product Group | 5508 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Set |
| Commodity Code | 85362010 |
| Product family | Basic Devices |
| reference code | |
| Net Weight (kg) | 1,310 Kg |
| number of poles | 1 |
| product feature | |
| ● rated value | 25 kA |
| fastening method | Busbar |
| shock resistance | 30 g, at least 3 impacts, impact duration 11 ms |
| Country of origin | Czech Republic |
| product component | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 98,00 x 185,00 x 145,00 |
| Product Description | Main miniature circuit breaker (SHU), 1-pole, E 16A, 230/400 V (block with L1, L2, L3) |
| degree of pollution | 3 |
| operational current | |
| product designation | Miniature circuit breaker |
| protection class IP | IP40, with connected conductors |
| ● solid / maximum | 50 mm² |
| ● solid / minimum | 2.5 mm² |
| Frequency (EF000034) | 50 |
| overvoltage category | IV |
| design of the product | Main miniature circuit breaker |
| ● stranded / maximum | 50 mm² |
| ● stranded / minimum | 2.5 mm² |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 16 A |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 16 |
| Rated voltage (EF000228) | 230 |
| depth / of the enclosure | 76.3 mm |
| suitability for operation | Residential buildings/infrastructure |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Busbar |
| Number of poles (EF001391) | 1 |
| switching capacity current | |
| ● infeed at box terminal | Yes |
| Pollution degree (EF002570) | 3 |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | F |
| ● at 30 °C / rated value | 16 A |
| ● at 40 °C / rated value | 15.2 A |
| ● at 45 °C / rated value | 14.8 A |
| ● at 50 °C / rated value | 14.4 A |
| ● at 55 °C / rated value | 14 A |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | F |
| number of modular width units | 1.5 |
| tripping characteristic class | E |
| operating voltage / rated value | |
| position / of power supply cord | Stipulated by installation in the lower section of the meter panel |
| Over voltage category (EF002569) | 4 |
| Release characteristic (EF000889) | E |
| Rated switching capacity (EF002563) | 25.0 |
| Degree of protection (IP) (EF005474) | IP40 |
| ambient temperature / during storage | |
| supply voltage / at AC / rated value | 230 V |
| Article Number (Market Facing Number) | 5SP3716-2 |
| insulation voltage (Ui) / rated value | 690 V |
| Rated insulation voltage Ui (EF001366) | 690 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| supply voltage frequency / rated value | 50 Hz |
| surge voltage resistance / rated value | 6 kV |
| ● according to EN 60898 / rated value | 25 kA |
| Concurrently switching N-neutral (EF005997) | false |
| Rated surge voltage invariability (EF002578) | 6.0 |
| ● outgoing feeder via spring-loaded terminal | Yes |
| display version / for switch position indicator | OFF = green, ON = red |
| vibration resistance / according to IEC 60068-2-6 | 2 g, 20 frequency cycles 5 to 150 to 15 Hz |
| Region Specific PriceGroup / Headquarter Price Group | 12D / 1AE |
| mechanical service life (switching cycles) / typical | 20 000 |
| Construction size (according to DIN 43880) (EF002565) | - |
| connectable conductor cross-section / of the box terminal | |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 4.5 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
| connectable conductor cross-section / of spring-loaded terminal / finely stranded / with core end processing |
Product Description
AUTOMAT MAGNETOTERMIC PRINCIPAL (SHU), 1 POLE, E 16A, 230/400 V (SET WITH L1, L2, L3). Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
