5SM9121-0KK

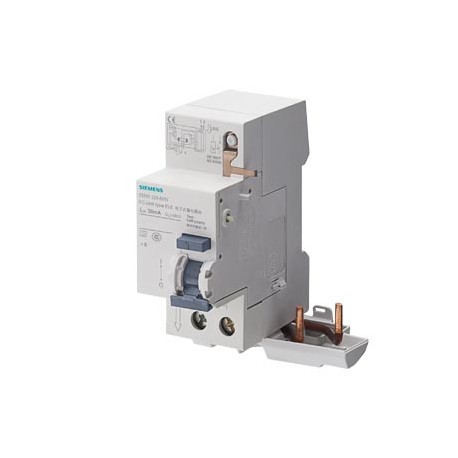

5SM9121-0KK SIEMENS RC unit, 2-pole, type AC, In: 16 A, 10 mA, Un AC: 400 V
$0.00USD
3387 in stock
Key Specifications
:Confirmation
EAN:4001869354538
UPC:Not available
Group Code:P310
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4001869354538 |
| UPC | Not available |
| Group Code | P310 |
| net weight | 170 g |
| Metal Factor | LHB----- |
| Date5/12/2022 | |
| Product Group | 5510 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389000 |
| Product family | Not available |
| power loss [W] | |
| Net Weight (kg) | 0,170 Kg |
| number of poles | 2 |
| Country of origin | China |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Product Description | RC unit, 2-pole, type AC, In: 16 A, 10 mA, Un AC: 400 V |
| operational current | |
| product designation | RC unit electronic |
| Frequency (EF005455) | 50 Hz |
| design of the product | Instantaneous |
| residual current type | AC |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 16 A |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 16 |
| Rated voltage (EF000228) | 400 |
| Built-in depth (EF000218) | - |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Mounting method (EF000003) | Other |
| Number of poles (EF001391) | 2 |
| Pollution degree (EF002570) | - |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 40 °C / rated value | 14.9 A |
| ● at 45 °C / rated value | 14.88 A |
| ● at 50 °C / rated value | 14.4 A |
| ● at 55 °C / rated value | 13.92 A |
| ● at 60 °C / rated value | 13.6 A |
| ● at 65 °C / rated value | 13.28 A |
| ● at 70 °C / rated value | 12.8 A |
| Package size unit of measure | Not available |
| Rated fault current (EF002358) | 0.01 |
| Leakage current type (EF002560) | AC |
| Selective protection (EF002561) | - |
| Surge current capacity (EF002564) | - |
| With interlocking device (EF007385) | true |
| Degree of protection (IP) (EF005474) | Other |
| tripping fault current / rated value | 10 mA |
| Article Number (Market Facing Number) | 5SM9121-0KK |
| Rated insulation voltage Ui (EF001366) | - |
| Short-time delayed tripping (EF003604) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Additional equipment possible (EF008148) | - |
| value range / of the supply voltage / at AC | 230/400 V |
| value range / of the supply voltage frequency | 50 Hz |
| Width in number of modular spacings (EF002950) | - |
| Ambient temperature during operating (EF007515) | ['-', '-'] |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| Short-circuit breaking capacity (Icw) (EF002562) | - |
| Region Specific PriceGroup / Headquarter Price Group | 194 / 1AI |
| Connectable conductor cross section solid-core (EF007337) | - |
| Connectable conductor cross section multi-wired (EF007343) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 0.8 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
DI block, 2 poles, Type AC, Input: 16 A, 10 mA, One AC: 400 V. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
