5SM6024-2

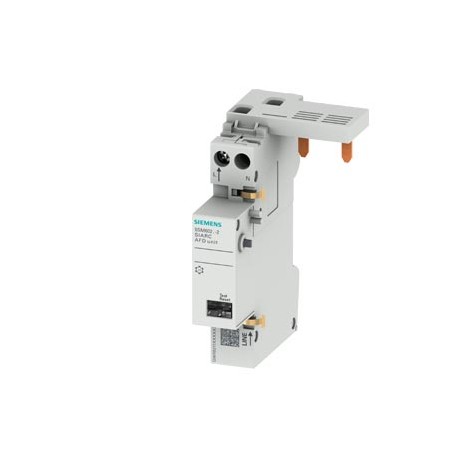

5SM6024-2 SIEMENS Arc fault detection device block AFDD, 1-40 A 230 V for CB and RCBO 1+N 2MW
$0.00USD
3886 in stock
Key Specifications
:
EAN:4001869525778
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869525778 |
| UPC | Not available |
| ETIM | 5 |
| depth | 68.5 mm |
| width | 54 mm |
| eClass | 7.1 |
| height | 95 mm |
| Group Code | P310 |
| net weight | 121 g |
| ● maximum | 16 mm² |
| ● minimum | 0.75 mm² |
| Confirmation | |
| Metal Factor | L-A----- |
| Date5/17/2022 | |
| Product Group | 5546 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | Ordering Data Overview |
| design of pole | 1P+N |
| supply voltage | |
| Net Weight (kg) | 0,103 Kg |
| number of poles | 2 |
| product feature | |
| fastening method | DIN rail (REG) |
| tripping current | |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 80,00 x 100,00 x 62,00 |
| Product Description | Arc fault detection device block AFDD, 1-40 A 230 V for CB and RCBO 1+N 2MW |
| degree of pollution | 2 |
| product designation | Arc-fault detection unit block |
| protection class IP | IP20, with connected protective device and conductors |
| Frequency (EF005455) | - |
| overvoltage category | III |
| design of the product | for MCB 5SY, 5SL4 and RCBO 5SU1 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 230 V |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | - |
| Rated voltage (EF000228) | - |
| Built-in depth (EF000218) | - |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Mounting method (EF000003) | - |
| Number of poles (EF001391) | - |
| Pollution degree (EF002570) | - |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Miscellaneous |
| number of modular width units | 1 |
| Rated fault current (EF002358) | - |
| Leakage current type (EF002560) | - |
| Selective protection (EF002561) | - |
| position / of power supply cord | Bottom |
| Surge current capacity (EF002564) | - |
| With interlocking device (EF007385) | - |
| Degree of protection (IP) (EF005474) | - |
| ambient temperature / during storage | |
| Article Number (Market Facing Number) | 5SM6024-2 |
| Rated insulation voltage Ui (EF001366) | - |
| Short-time delayed tripping (EF003604) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| switching function / short-term delayed | No |
| Additional equipment possible (EF008148) | - |
| operational current / at AC / rated value | 40 A |
| type of voltage / of the operating voltage | AC |
| connectable conductor cross-section / solid | |
| tightening torque / with screw-type terminals | |
| value range / of the supply voltage frequency | 50Hz |
| Width in number of modular spacings (EF002950) | - |
| connectable conductor cross-section / stranded | |
| Ambient temperature during operating (EF007515) | - |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| Short-circuit breaking capacity (Icw) (EF002562) | - |
| ambient temperature / with relative humidity 95% | 55 °C |
| Region Specific PriceGroup / Headquarter Price Group | 13E / 1BA |
| mechanical service life (switching cycles) / typical | 10 000 |
| size of installation devices / according to DIN 43880 | 1 |
| product extension / installable / supplementary devices | Yes |
| Connectable conductor cross section solid-core (EF007337) | - |
| Connectable conductor cross section multi-wired (EF007343) | - |
| touch protection against electrical shock / according to EN 50274 | finger and back-of-hand safe |
| number of modular width units / of the mountable protective device | 2 |
| ● in the event of electrical arcs in series with the load / maximum | 40 A |
| ● in the event of electrical arcs in series with the load / minimum | 2 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2014 |
| ● in the event of electrical arcs in parallel with the load / maximum | 500 A |
| ● in the event of electrical arcs in parallel with the load / minimum | 50 A |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| number of test cycles / for environmental testing / according to IEC 60068-2-30 | 28 |
| connectable conductor cross-section / finely stranded / with core end processing | |
| General Product ApprovalDeclaration of ConformityConfirmationDeclaration of ConformityTest CertificatesotherUK Declaration of ConformityMiscellaneousMiscellaneousMiscellaneous | General Product Approval |
