5SM2325-3

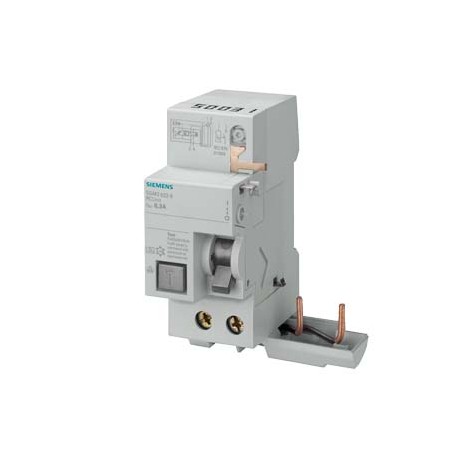

5SM2325-3 SIEMENS RC unit for 5SY, 2-pole, type F, short-time delayed, In: 63 A, 30 mA, Un AC: 230 V
$0.00USD
4227 in stock
Key Specifications
:
EAN:4001869460659
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869460659 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 214 g |
| ● maximum | 9.2 W |
| ● minimum | 1.5 mm² |
| Metal Factor | L-A----- |
| ● sealable | No |
| Date5/15/2022 | |
| Product Group | 5511 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | RC Units |
| power loss [W] | |
| Net Weight (kg) | 0,213 Kg |
| number of poles | 2 |
| product feature | |
| fastening method | REG |
| Country of origin | Czech Republic |
| mounting position | any |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 106,00 x 76,00 x 81,00 |
| Product Description | RC unit for 5SY, 2-pole, type F, short-time delayed, In: 63 A, 30 mA, Un AC: 230 V |
| degree of pollution | 2 |
| operational current | |
| product designation | RCD-unit |
| overvoltage category | III |
| design of the product | short-time delayed |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AC / rated value | 63 A |
| ● maximum permissible | 75 °C |
| ● minimum permissible | -40 °C |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 40 °C / rated value | 58.6 A |
| ● at 45 °C / rated value | 58.59 A |
| ● at 50 °C / rated value | 56.7 A |
| ● at 55 °C / rated value | 54.81 A |
| ● at 60 °C / rated value | 53.55 A |
| ● at 65 °C / rated value | 52.29 A |
| ● at 70 °C / rated value | 50.4 A |
| Package size unit of measure | MM |
| number of modular width units | 2 |
| ● OFF-delay time adjustable | No |
| ● rated fault current adjustable | No |
| ambient temperature / during storage | |
| protection function / false tripping | Yes |
| tripping fault current / rated value | 30 mA |
| Article Number (Market Facing Number) | 5SM2325-3 |
| insulation voltage (Ui) / rated value | 460 V |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| surge current resistance / rated value | 3 kA |
| surge voltage resistance / rated value | 4 000 V |
| connectable conductor cross-section / solid | |
| tightening torque / with screw-type terminals | |
| connectable conductor cross-section / stranded | |
| Region Specific PriceGroup / Headquarter Price Group | 11C / 1AH |
| mechanical service life (switching cycles) / typical | 10 000 |
| size of installation devices / according to DIN 43880 | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● for rated value of the current / at AC / in hot operating state / per pole | 4.6 W |
| number of test cycles / for environmental testing / according to IEC 60068-2-30 | 28 |
Product Description
Block FI, 2 poles, Type F, with short delay, Input: 63 A, 30 mA, One AC: 230 V, for 5SY. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
