5SL6502-7

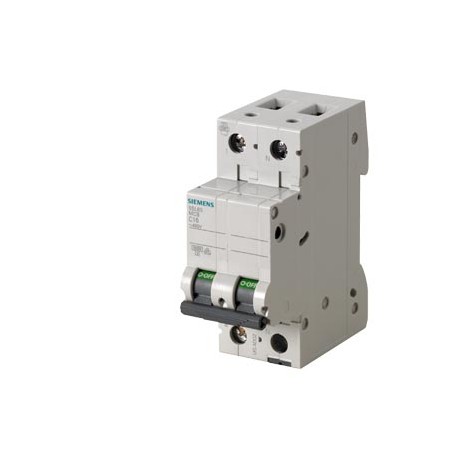

5SL6502-7 SIEMENS Miniature circuit breaker 230 V 6kA, 1+N-pole, C, 2A
$0.00USD
4469 in stock
Key Specifications
:VersionClassificationeClass627-14-19-01eClass7.127-14-19-01eClass827-14-19-01eClass927-14-19-01eClass9.127-14-19-01ETIM5EC000042ETIM6EC000042ETIM7EC000042ETIM8EC000042UNSPSC1439-12-16-01UNSPSC1539-12-16-03
EAN:4001869389257
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-19-01eClass7.127-14-19-01eClass827-14-19-01eClass927-14-19-01eClass9.127-14-19-01ETIM5EC000042ETIM6EC000042ETIM7EC000042ETIM8EC000042UNSPSC1439-12-16-01UNSPSC1539-12-16-03 | |
| EAN | 4001869389257 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| Metal Factor | L-O----- |
| Product Group | 3803 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | Basic Devices |
| Net Weight (kg) | 0,255 Kg |
| Country of origin | Romania |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 40,00 x 92,00 x 84,00 |
| Product Description | Miniature circuit breaker 230 V 6kA, 1+N-pole, C, 2A |
| Frequency (EF000416) | ['50.0', '50.0'] |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 2 |
| Rated voltage (EF000228) | 230 |
| Built-in depth (EF000218) | 70.0 |
| Export Control Regulations | AL : N / ECCN : N |
| Pollution degree (EF002570) | 2 |
| Standard lead time ex-works | 30 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Over voltage category (EF002569) | 3 |
| Current limiting class (EF002568) | 3 |
| Release characteristic (EF000889) | C |
| Number of poles (total) (EF008618) | 2 |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of protected poles (EF005548) | 1P+N |
| Article Number (Market Facing Number) | 5SL6502-7 |
| Rated insulation voltage Ui (EF001366) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Additional equipment possible (EF008148) | true |
| Concurrently switching N-neutral (EF005997) | true |
| Width in number of modular spacings (EF002950) | 2 |
| Ambient temperature during operating (EF007515) | ['-25', '45'] |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| Suitable for flush-mounted installation (EF006573) | false |
| Region Specific PriceGroup / Headquarter Price Group | 12B / 1AC |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '25.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '25.0'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | 6.0 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | 6.0 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | 6.0 |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | 6.0 |
Product Description
Circuit Breaker 70mm, 6kA, curve C, 1 pole+N, 2A. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
