5SJ6316-7KS

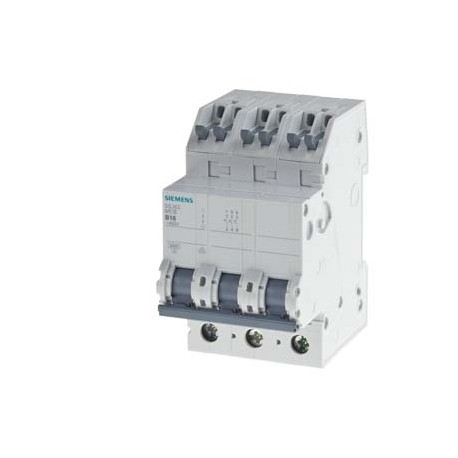

5SJ6316-7KS SIEMENS Miniature circuit breaker 400 V 6kA, 3-pole, C, 16A, D 70 mm with screwless outgoing ter..
$0.00USD
4462 in stock
Key Specifications
:
EAN:4001869324173
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869324173 |
| UPC | Not available |
| ETIM | 5 |
| depth | 76 mm |
| width | 54 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 90 mm |
| Group Code | P310 |
| ● maximum | 4 mm² |
| ● minimum | 1.5 mm² |
| Confirmation | |
| Date5/5/2022 | |
| Metal Factor | L-O----- |
| ● sealable | Yes |
| Miscellaneous | |
| Product Group | 5503 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | Basic Devices |
| reference code | |
| Net Weight (kg) | 0,351 Kg |
| number of poles | 3 |
| product feature | |
| ● halogen-free | Yes |
| ● silicon-free | Yes |
| Country of origin | Romania |
| mounting position | any |
| operating voltage | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| installation depth | 70 mm |
| product brand name | SENTRON |
| Packaging Dimension | 58,00 x 94,00 x 84,00 |
| Product Description | Miniature circuit breaker 400 V 6kA, 3-pole, C, 16A, D=70 mm with screwless outgoing terminals |
| degree of pollution | 2 |
| operational current | |
| product designation | Miniature circuit breaker |
| protection class IP | IP20, with connected conductors |
| Frequency (EF000416) | ['50.0', '50.0'] |
| overvoltage category | 3 |
| design of the product | Miniature circuit breaker 5SJ6 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC/DC |
| energy limitation class | 3 |
| ● at AC / rated value | 16 A |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 16 |
| Rated voltage (EF000228) | 400 |
| Built-in depth (EF000218) | 70.0 |
| suitability for operation | Residential buildings/infrastructure |
| Export Control Regulations | AL : N / ECCN : N |
| switching capacity current | |
| Pollution degree (EF002570) | 2 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| ● according to EN 61346-2 | F |
| Package size unit of measure | MM |
| ● according to IEC 81346-2 | F |
| number of modular width units | 3 |
| tripping characteristic class | C |
| Over voltage category (EF002569) | 3 |
| Current limiting class (EF002568) | 3 |
| Release characteristic (EF000889) | C |
| ● at DC / rated value / maximum | 60 V |
| Number of poles (total) (EF008618) | 3 |
| product feature / touch protection | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of protected poles (EF005548) | 3P |
| ambient temperature / during storage | |
| supply voltage / at AC / rated value | 400 V |
| Article Number (Market Facing Number) | 5SJ6316-7KS |
| Rated insulation voltage Ui (EF001366) | 440 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| supply voltage frequency / rated value | 50 Hz |
| ● according to EN 60898 / rated value | 6 kA |
| Additional equipment possible (EF008148) | false |
| influence of the surrounding temperature | Periodically +55°C, max. 95% humidity |
| type of voltage / of the operating voltage | AC/DC |
| ● according to IEC 60947-2 / rated value | 6 kA |
| Concurrently switching N-neutral (EF005997) | false |
| connectable conductor cross-section / solid | |
| insulation voltage (Ui) / at AC / rated value | 440 V |
| Width in number of modular spacings (EF002950) | 3 |
| connectable conductor cross-section / stranded | |
| Ambient temperature during operating (EF007515) | ['-25', '45'] |
| Rated impulse withstand voltage Uimp (EF011980) | - |
| product component / neutral conductor switching | No |
| ● with multi-phase operation / at AC / maximum | 440 V |
| Suitable for flush-mounted installation (EF006573) | false |
| Region Specific PriceGroup / Headquarter Price Group | 11B / 1AC |
| mechanical service life (switching cycles) / typical | 20 000 |
| product extension / installable / supplementary devices | No |
| Connectable conductor cross section solid-core (EF007337) | ['0.75', '25.0'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.75', '25.0'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V (EF009556) | 6.0 |
| Rated short-circuit breaking capacity Icn EN 60898 at 400 V (EF009555) | 6.0 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V (EF009557) | 6.0 |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V (EF009558) | 6.0 |
| connectable conductor cross-section / finely stranded / with core end processing | |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.9 W |
| connectable conductor cross-section / on plug-type connection / using the upper clamping point / without core end processing | |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformityMiscellaneousotherMiscellaneous | General Product Approval |
Product Description
INTERR. SELECT PROTECTION. 400V 6KA, 3POLOS, C, 16A, P=70MM WITH OUTPUT TERMINAL S.SCREWS. Cancelations and returns limited. Consult conditions.
