5SH5525

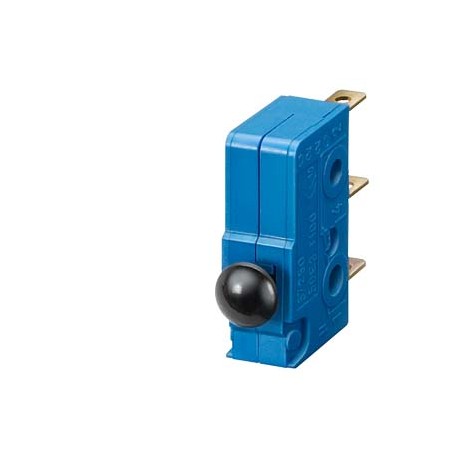

5SH5525 SIEMENS Auxiliary current switch for 5SG7230 and 3NW7430
$0.00USD
3224 in stock
Key Specifications
:
EAN:4001869251486
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869251486 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 9 g |
| Confirmation | |
| Date5/8/2022 | |
| Metal Factor | L-P----- |
| Product Group | 5541 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,009 Kg |
| ● rated value | 230 V |
| Country of origin | Germany |
| operating voltage | |
| product extension | Auxiliary current switch |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 55,00 x 81,00 x 13,00 |
| Product Description | Auxiliary current switch for 5SG7230 and 3NW7430 |
| product designation | Auxiliary current switch |
| design of the product | Mountable |
| number of CO contacts | 1 |
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF000228) | 230 |
| Device fitting (EF007826) | Other |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Assembly width (TE) (EF003569) | - |
| Additional equipment (EF008146) | Auxiliary switch |
| Rated switch current (EF006706) | 2 |
| number of fault signal contacts | 0 |
| product extension / can be mounted | others |
| Installed at the factory (EF002581) | false |
| type of voltage / of control voltage | AC |
| Article Number (Market Facing Number) | 5SH5525 |
| Voltage type for actuating (EF008242) | AC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| design of the product / factory mounted | No |
| switching capacity current / rated value | 2 A |
| Number of fault-signal switches (EF007613) | 0 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1CU |
| With auto test for earth leakage function (EF008727) | - |
| Number of contacts as normally open contact (EF008256) | 0 |
| Suitable for max. current main contact unit (EF008730) | - |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| Suitable for max. number of poles main contact unit (total) (EF008729) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
AUXILIARY CURRENT SWITCH FOR 5SG7230 AND 3NW7430. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
