5SH5322

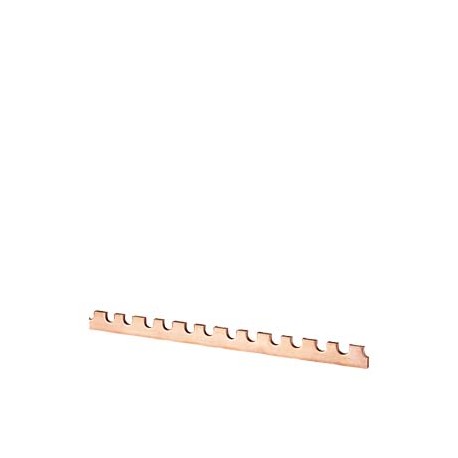

5SH5322 SIEMENS Busbar, with punchings, Module width 27 mm for NEOZED fuse base D02 CU blank, 36 mm2, 1000mm
$0.00USD
3801 in stock
Key Specifications
:
EAN:4001869068428
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869068428 |
| UPC | Not available |
| ETIM | 5 |
| width | 3 mm |
| UNSPSC | 15 |
| eClass | 6 |
| length | 1 000 mm |
| Group Code | P310 |
| net weight | 260 g |
| Confirmation | |
| Date5/2/2022 | |
| Metal Factor | L-P----- |
| Product Group | 5535 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| busbar design | flat |
| Commodity Code | 85369001 |
| Product family | SENTRON Busbar Systems |
| Net Weight (kg) | 0,260 Kg |
| Model (EF000010) | Flat |
| Width (EF000008) | 3.0 |
| Country of origin | Germany |
| Height (EF000040) | 12.0 |
| Length (EF001438) | 1000.0 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Flexible (EF000083) | true |
| Packaging Dimension | 100,00 x 1020,00 x 80,00 |
| Product Description | Busbar, with punchings, Module width 27 mm for NEOZED fuse base D02 CU blank, 36 mm2, 1000mm |
| product designation | Busbar |
| design of the product | D02, CU 36mm² |
| thickness / of busbar | 12 mm |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| material / of the busbar | SF-Cu F 24 |
| Export Control Regulations | AL : N / ECCN : N |
| product feature / flexible | Yes |
| Rated current In (EF008250) | 168.0 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Surface protection (EF000139) | - |
| surface processing / tin-plated | No |
| operational current / rated value | 168 A |
| Article Number (Market Facing Number) | 5SH5322 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
Slotted busbar, modular dimension 27mm, for NEOZED D02 fuse holders, polished copper, 36mm², 1000mm. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
