5SH1221

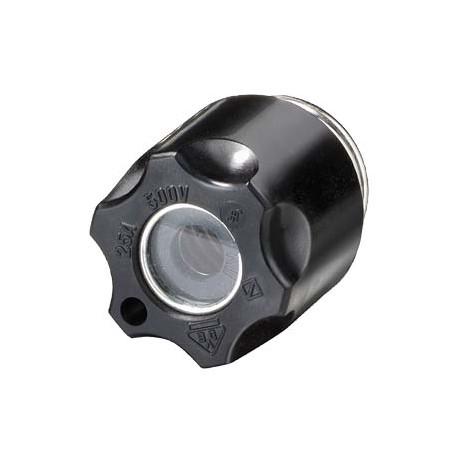

5SH1221 SIEMENS DIAZED screw cap DII 25 A 500 V AC/DC insulating material with inspection hole
$0.00USD
3914 in stock
Key Specifications
:
EAN:4001869144061
UPC:754554215815
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869144061 |
| UPC | 754554215815 |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 24 g |
| Confirmation | |
| Date5/9/2022 | |
| Metal Factor | None |
| Product Group | 5535 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | SENTRON DIAZED Fuse Systems |
| Net Weight (kg) | 0,024 Kg |
| Country of origin | Hungary |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Material (EF002169) | Plastic |
| Packaging Dimension | 88,00 x 168,00 x 70,00 |
| Product Description | DIAZED screw cap DII 25 A 500 V AC/DC insulating material with inspection hole |
| product designation | DIAZED screw cap |
| design of the product | With inspection hole |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Construction size (EF002566) | DII |
| Package size unit of measure | MM |
| material / of D fuse screw cap | plastic |
| supply voltage / at AC / rated value | 500 V |
| Article Number (Market Facing Number) | 5SH1221 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| operational current / at AC / rated value | 25 A |
| size of fuse system / according to EN 60269-1 | DII |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
Threaded cap, DII size, of insulating material, with hole to check tensions (** ATTENTION: Price per 1 Unit and Minimum Quantity / Order Multiple 5 Units ** ). Cancelations and returns limited. Consul
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
