5SH112

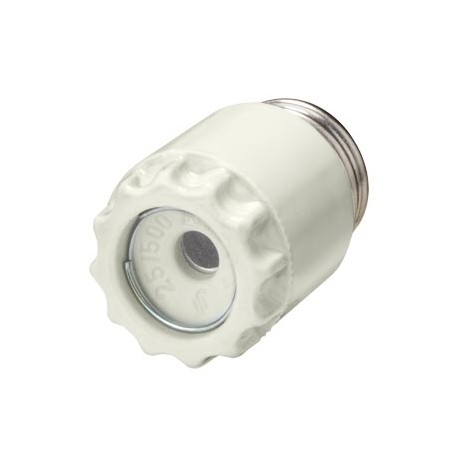

5SH112 SIEMENS DIAZED screw cap DII 25 A 500 V AC/DC ceramic
$0.00USD
4335 in stock
Key Specifications
:
EAN:4001869023489
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869023489 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 37 g |
| Confirmation | |
| Metal Factor | None |
| Date5/12/2022 | |
| Product Group | 5535 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | SENTRON DIAZED Fuse Systems |
| Net Weight (kg) | 0,037 Kg |
| Country of origin | Slovenia |
| Test Certificates | other |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Material (EF002169) | Porcelain |
| Packaging Dimension | 47,00 x 231,00 x 44,00 |
| Product Description | DIAZED screw cap DII 25 A 500 V AC/DC ceramic |
| product designation | DIAZED screw cap |
| Minimum order quantity | 50 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Construction size (EF002566) | DII |
| Package size unit of measure | MM |
| material / of D fuse screw cap | porcelain |
| Type Test Certificates/Test Report | Miscellaneous |
| supply voltage / at AC / rated value | 500 V |
| Article Number (Market Facing Number) | 5SH112 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| operational current / at AC / rated value | 25 A |
| size of fuse system / according to EN 60269-1 | DII |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformitySpecial Test CertificateTest CertificatesotherType Test Certificates/Test ReportMiscellaneous | General Product Approval |
