5SG7661-0KK16

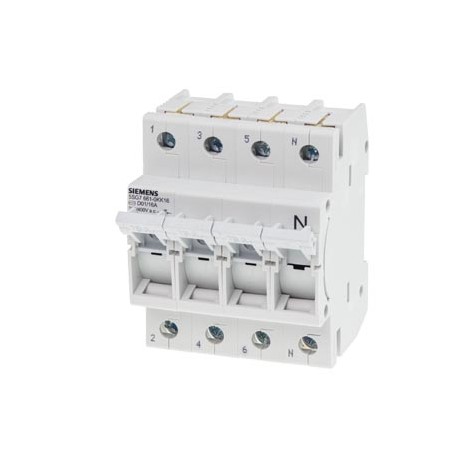

5SG7661-0KK16 SIEMENS MINIZED, fuse switch disconnector, D01, 4-pole, 3P+N, In: 16 A, Un AC: 400 V
$0.00USD
3265 in stock
Key Specifications
:
EAN:4001869475912
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869475912 |
| UPC | Not available |
| ETIM | 5 |
| depth | 88 mm |
| width | 108 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 70 mm |
| Group Code | P310 |
| net weight | 270 g |
| ● maximum | 3 N·m |
| ● minimum | 2.5 N·m |
| Confirmation | |
| Date5/9/2022 | |
| Metal Factor | L-P----- |
| Product Group | 5536 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85362010 |
| Product family | MINIZED Switch Disconnectors and MINIZED Fuse Switch Disconnectors |
| Net Weight (kg) | 0,305 Kg |
| number of poles | 4 |
| Country of origin | Slovenia |
| mounting position | any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | MINIZED |
| Packaging Dimension | 80,00 x 93,00 x 20,00 |
| Product Description | MINIZED, fuse switch disconnector, D01, 4-pole, 3P+N, In: 16 A, Un AC: 400 V |
| product designation | Fuse switch disconnector |
| protection class IP | IP20, with connected conductors |
| overvoltage category | 4 |
| Minimum order quantity | 3 |
| number of poles / note | 3P+N |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 16 |
| Rated voltage (EF000228) | 400 |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 4 |
| product feature / sealable | Yes |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Construction size (EF002566) | D01 |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 5SG7661-0KK16 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| surge voltage resistance / rated value | 6 kV |
| operating voltage / at AC / rated value | 400 V |
| operational current / at AC / rated value | 16 A |
| size of fuse system / according to EN 60269-1 | D01 |
| tightening torque / with screw-type terminals | |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2013 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 0.4 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
MINIZED D01 16A 3P+N disconnectors ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiplication 3 Units ** ). Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
