5SG7234-2

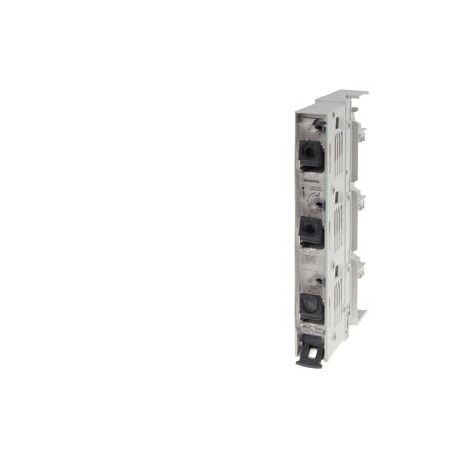

5SG7234-2 SIEMENS D0-SWITCH-DISCONNECTOR-FUSE 400V D02 63A 3-POLE FOR 60MM-BUSBAR-SYSTEM WITH SCREWLESS TERM..
$0.00USD
3932 in stock
Key Specifications
:
EAN:4001869504025
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869504025 |
| UPC | Not available |
| ETIM | 5 |
| depth | 200 mm |
| width | 27 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 79 mm |
| Group Code | P310 |
| net weight | 330 g |
| Confirmation | |
| Metal Factor | L-B----- |
| Date5/15/2022 | |
| Product Group | 5536 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | MINIZED Switch Disconnectors and MINIZED Fuse Switch Disconnectors |
| Net Weight (kg) | 0,391 Kg |
| number of poles | 3 |
| Country of origin | Germany |
| mounting position | any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | MINIZED |
| Packaging Dimension | 130,00 x 222,00 x 29,00 |
| Product Description | D0-SWITCH-DISCONNECTOR-FUSE 400V D02 63A 3-POLE FOR 60MM-BUSBAR-SYSTEM WITH SCREWLESS TERMINALS WITH LED-SIGNALLING |
| product designation | Switch disconnectors with fuses |
| protection class IP | IP20, with connected conductors |
| design of the product | For busbar system 8US 60 mm, with LED signal detector |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | other |
| Rated current (EF000227) | 63 |
| Rated voltage (EF000228) | 400 |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| product feature / sealable | Yes |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Construction size (EF002566) | D02 |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 5SG7234-2 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| surge voltage resistance / rated value | 6 kV |
| operating voltage / at AC / rated value | 400 V |
| operational current / at AC / rated value | 63 A |
| size of fuse system / according to EN 60269-1 | D02 |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1BM |
| General Product ApprovalotherConfirmationMiscellaneous | General Product Approval |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 7.5 W |
Product Description
SWITCH-SECC. D0 C. FUS. 400V D02 63A 3 POLES FOR 60MM BUSBARS WITH SCREWLESS TERMINALS WITH LED INDICATOR. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
