5SG7123

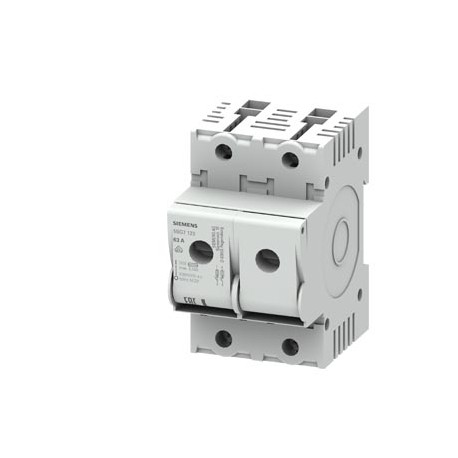

5SG7123 SIEMENS MINIZED, Switch disconnector with Fuse, D02, 2-pole, In: 63 A, Un AC: 400 V
$0.00USD
4930 in stock
Key Specifications
:Miscellaneous
EAN:4001869319247
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Miscellaneous | |
| EAN | 4001869319247 |
| UPC | Not available |
| ETIM | 5 |
| depth | 90 mm |
| width | 54 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 70 mm |
| Group Code | P310 |
| net weight | 306 g |
| ● maximum | 3 N·m |
| ● minimum | 2.5 N·m |
| Confirmation | |
| Date5/3/2022 | |
| Metal Factor | L-P----- |
| Product Group | 5536 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85363030 |
| Product family | MINIZED Switch Disconnectors and MINIZED Fuse Switch Disconnectors |
| Net Weight (kg) | 0,305 Kg |
| number of poles | 2 |
| Country of origin | Germany |
| Marine / Shipping | other |
| mounting position | any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | MINIZED |
| Packaging Dimension | 84,00 x 96,00 x 86,00 |
| Product Description | MINIZED, Switch disconnector with Fuse, D02, 2-pole, In: 63 A, Un AC: 400 V |
| product designation | Switch disconnectors with fuses |
| protection class IP | IP20, with connected conductors |
| overvoltage category | 4 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 63 |
| Rated voltage (EF000228) | 400 |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 2 |
| product feature / sealable | Yes |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Construction size (EF002566) | D02 |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 5SG7123 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| surge voltage resistance / rated value | 6 kV |
| operating voltage / at AC / rated value | 400 V |
| operational current / at AC / rated value | 63 A |
| size of fuse system / according to EN 60269-1 | D02 |
| tightening torque / with screw-type terminals | |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 5 W |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformityType Test Certificates/Test ReportMarine / ShippingotherMiscellaneous | General Product Approval |
Product Description
Switch-fuse MINIZED 70mm, p/cartridges NEOZED tam. D02/63A, 2 poles, 3 mod., insertable technique. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
