5SG6202

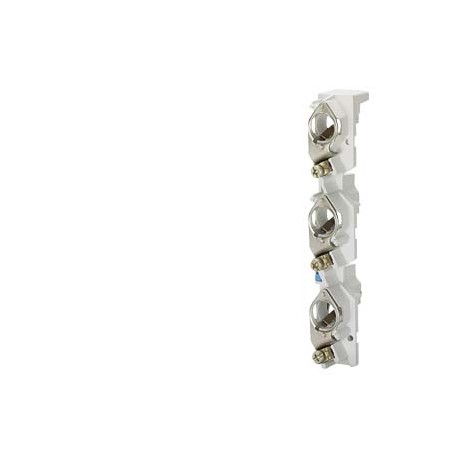

5SG6202 SIEMENS NEOZED, fuse base, D02, 3-pole, 63 A, Un AC: 400 V, Un DC: 250 V, for Busbar system 8US 60 m..
$0.00USD
4350 in stock
Key Specifications
:
EAN:4001869176925
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869176925 |
| UPC | Not available |
| ETIM | 5 |
| depth | 33.5 mm |
| width | 27 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 200 mm |
| Group Code | P310 |
| net weight | 111 g |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/17/2022 | |
| Product Group | 5541 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,111 Kg |
| number of poles | 3 |
| fastening method | Busbar system |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | NEOZED |
| product variations | For 60 mm 8US busbar system |
| Material (EF002169) | Plastic |
| Packaging Dimension | 108,00 x 185,00 x 65,00 |
| Product Description | NEOZED, fuse base, D02, 3-pole, 63 A, Un AC: 400 V, Un DC: 250 V, for Busbar system 8US 60 mm without cover |
| product designation | Fuse base |
| design of the product | NEOZED bus-mounting fuse base |
| Minimum order quantity | 4 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 63.0 |
| Rated voltage (EF000228) | 400 |
| material / of D fuse base | plastic |
| product component / cover | No |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Rail system |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Construction size (EF002566) | D02 |
| Package size unit of measure | MM |
| Version with cover (EF004475) | false |
| operating voltage / rated value | 400 V |
| operational current / rated value | 63 A |
| Article Number (Market Facing Number) | 5SG6202 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| size of fuse system / according to EN 60269-1 | D02 |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1CU |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 3 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
NEOZED FUSE BASE FOR SYSTEM BUSBARS P. TAP RING OF ADAPT. 5SH FOR BARS 5/10MM SIZE D02/63A 3POLAR 380V ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 4 Units ** ). Cancelation
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
