5SG5702

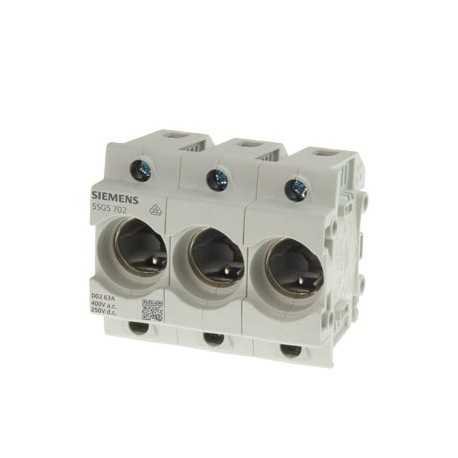

5SG5702 SIEMENS NEOZED, fuse base, D02, 3-pole, 63 A, Un AC: 400 V, Un DC: 250 V without LED signal detector..
$0.00USD
3706 in stock
Key Specifications
:
EAN:4001869503066
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869503066 |
| UPC | Not available |
| ETIM | 5 |
| depth | 55 mm |
| width | 81 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 67 mm |
| Group Code | P310 |
| net weight | 207 g |
| Confirmation | |
| Metal Factor | L-B----- |
| Date5/12/2022 | |
| Product Group | 5535 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | NEOZED Fuse Bases and Accessories |
| Net Weight (kg) | 0,208 Kg |
| number of poles | 3 |
| fastening method | DIN rail |
| Country of origin | Slovenia |
| LKZ_FDB/ CatalogID | LV10 |
| Packaging Quantity | 1 |
| product brand name | NEOZED |
| Material (EF002169) | Plastic |
| Packaging Dimension | 86,00 x 125,00 x 80,00 |
| Product Description | NEOZED, fuse base, D02, 3-pole, 63 A, Un AC: 400 V, Un DC: 250 V without LED signal detector with frame terminal |
| operational current | |
| product designation | Fuse base |
| design of the product | NEOZED fuse base installation |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 63.0 |
| Rated voltage (EF000228) | 400 |
| material / of D fuse base | plastic |
| product component / cover | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | DIN rail |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 35 °C / rated value | 60.48 A |
| ● at 40 °C / rated value | 59.22 A |
| ● at 45 °C / rated value | 57.96 A |
| ● at 50 °C / rated value | 56.7 A |
| ● at 55 °C / rated value | 55.44 A |
| ● at 60 °C / rated value | 54.18 A |
| ● at 65 °C / rated value | 52.29 A |
| ● at 70 °C / rated value | 51.03 A |
| Construction size (EF002566) | D02 |
| Package size unit of measure | MM |
| Version with cover (EF004475) | true |
| operating voltage / rated value | 400 V |
| operational current / rated value | 63 A |
| Article Number (Market Facing Number) | 5SG5702 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| size of fuse system / according to EN 60269-1 | D02 |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 3 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityMiscellaneous | General Product Approval |
Product Description
NEOZED, Fuse Base, D02, à3pôles , 63 A, One AC: 400 V, One DC: 250 V ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 5 Units ** ). Manufactured to order. Non-Cancelable Non-Ret
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
