5SF6220

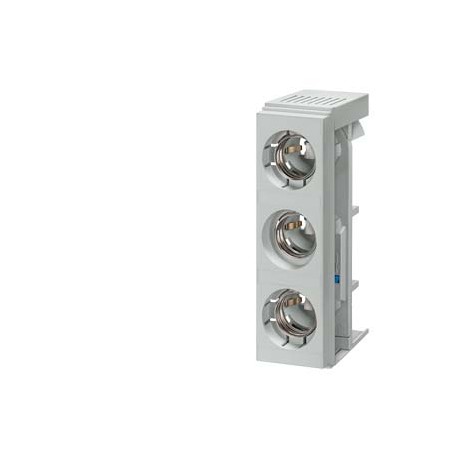

5SF6220 SIEMENS DIAZED bar mounting bases SR60 3P, DIII, 63 A, 500V for 5/10 mm busbars Adapter screw design
$0.00USD
4572 in stock
Key Specifications
:
EAN:4001869392479
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869392479 |
| UPC | Not available |
| ETIM | 5 |
| depth | 43.5 mm |
| width | 57 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 200 mm |
| Group Code | P310 |
| net weight | 397 g |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/13/2022 | |
| Product Group | 5541 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,397 Kg |
| number of poles | 3 |
| Model (EF000010) | Fitted ring |
| fastening method | DIN rail |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Material (EF002169) | Other |
| Packaging Dimension | 205,00 x 235,00 x 110,00 |
| Product Description | DIAZED bar mounting bases SR60 3P, DIII, 63 A, 500V for 5/10 mm busbars Adapter screw design |
| operational current | |
| product designation | DIAZED fuse system |
| design of the product | DIII BUS-MOUNTING BASE |
| Minimum order quantity | 4 |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse base | gauge inset |
| ● at AC / rated value | 63 A |
| General Product Approval | other |
| Rated current (EF000227) | 63 |
| Rated voltage (EF000228) | 690 |
| product component / cover | No |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Screw mounting |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| material / of the enclosure | others |
| Construction size (EF002566) | DIII |
| Package size unit of measure | MM |
| Version with cover (EF004475) | false |
| supply voltage / at AC / rated value | 690 V |
| Article Number (Market Facing Number) | 5SF6220 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| size of fuse system / according to EN 60269-1 | DIII |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1CU |
| General Product ApprovalotherConfirmationMiscellaneous | General Product Approval |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.04.2008 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
ZOCALO BAR DIAZED SR60 3P, DIII, 63 A, 500 V FOR BUSBARS 5/10 MM VERSION SCREW ADAPTER ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 4 Units ** ). Cancelations and returns li
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
