5SF6015

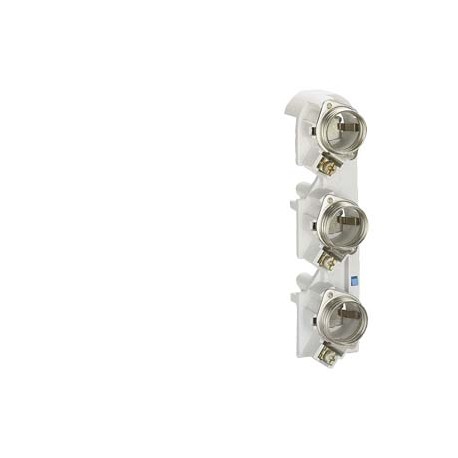

5SF6015 SIEMENS SR60 base DIAZED DII 3-pole 500 V AC DC for adaptor screw for 5/10 mm busbar thickness with ..
$0.00USD
4010 in stock
Key Specifications
:
EAN:4001869176987
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869176987 |
| UPC | Not available |
| ETIM | 5 |
| depth | 43.5 mm |
| width | 42 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 200 mm |
| Group Code | P310 |
| net weight | 233 g |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/12/2022 | |
| Product Group | 5541 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,233 Kg |
| number of poles | 3 |
| Model (EF000010) | Fitted ring |
| fastening method | DIN rail |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Material (EF002169) | Other |
| Packaging Dimension | 108,00 x 185,00 x 65,00 |
| Product Description | SR60 base DIAZED DII 3-pole 500 V AC DC for adaptor screw for 5/10 mm busbar thickness with clamp-type terminals |
| operational current | |
| product designation | DIAZED fuse system |
| design of the product | SR60 BASE |
| Minimum order quantity | 2 |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse base | gauge inset |
| ● at AC / rated value | 25 A |
| General Product Approval | Test Certificates |
| Rated current (EF000227) | 25 |
| Rated voltage (EF000228) | 500 |
| product component / cover | No |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Screw mounting |
| Number of poles (EF001391) | 3 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| material / of the enclosure | others |
| Construction size (EF002566) | DII |
| Package size unit of measure | MM |
| Version with cover (EF004475) | false |
| supply voltage / at AC / rated value | 500 V |
| Article Number (Market Facing Number) | 5SF6015 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| size of fuse system / according to EN 60269-1 | DII |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1CU |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalTest CertificatesotherConfirmationType Test Certificates/Test ReportMiscellaneous | General Product Approval |
Product Description
SR60-BASE FUSES DIAZED DII 3POLES AC DC 500V FOR ADJUSTMENT SCREW FOR BARS 5/10MM WITH BELL ARC ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 2 Units ** ). Cancelations and r
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
