5SF1205

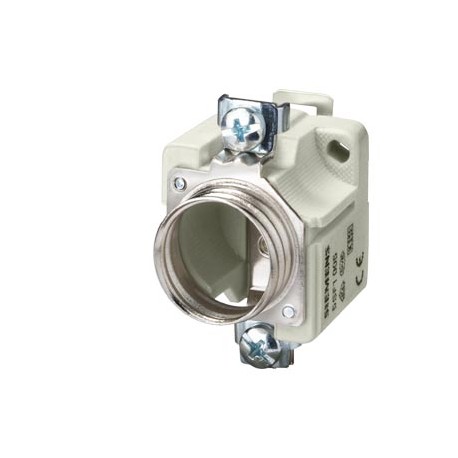

5SF1205 SIEMENS DIAZED base DIII 63 A 690 V AC 500 V DC Clamp terminal/saddle terminal
$0.00USD
4689 in stock
Key Specifications
:
EAN:4001869006253
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869006253 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 47 mm |
| width | 46 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 80 mm |
| Group Code | P310 |
| net weight | 179 g |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/10/2022 | |
| Miscellaneous | |
| Product Group | 5535 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | SENTRON DIAZED Fuse Systems |
| Net Weight (kg) | 0,179 Kg |
| number of poles | 1 |
| Model (EF000010) | Fitted screw |
| fastening method | DIN rail |
| Country of origin | Slovenia |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Material (EF002169) | Porcelain |
| Packaging Dimension | 80,00 x 230,00 x 60,00 |
| Product Description | DIAZED base DIII 63 A 690 V AC 500 V DC Clamp terminal/saddle terminal |
| operational current | |
| product designation | DIAZED fuse system |
| design of the product | DIAZED base |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse base | gauge inset |
| ● at AC / rated value | 63 A |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 63 |
| Rated voltage (EF000228) | 690 |
| product component / cover | No |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Screw mounting |
| Number of poles (EF001391) | 1 |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| material / of the enclosure | porcelain |
| ● at 35 °C / rated value | 63 A |
| Construction size (EF002566) | DIII |
| Package size unit of measure | MM |
| Version with cover (EF004475) | true |
| operational current / rated value | 63 A |
| supply voltage / at AC / rated value | 690 V |
| Article Number (Market Facing Number) | 5SF1205 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| size of fuse system / according to EN 60269-1 | DIII |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformityType Test Certificates/Test ReportotherMiscellaneous | General Product Approval |
