5SE2280

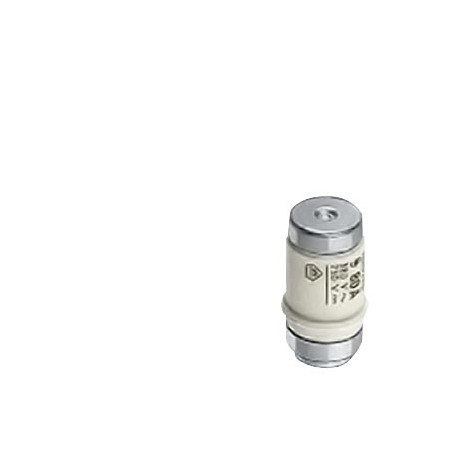

5SE2280 SIEMENS NEOZED fuse-link, D03, 80 A, gG, Un AC: 400 V, Un DC: 250 V
$0.00USD
4974 in stock
Key Specifications
:
EAN:4001869022055
UPC:754554344034
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869022055 |
| UPC | 754554344034 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| ● at DC | 250 V |
| Group Code | P310 |
| net weight | 39 g |
| ● maximum | 40 °C |
| ● minimum | 40 °C |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/18/2022 | |
| Miscellaneous | Type Test Certificates/Test Report |
| Product Group | 5535 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361090 |
| Product family | NEOZED Fuse Links |
| supply voltage | |
| Net Weight (kg) | 0,039 Kg |
| Country of origin | Slovenia |
| Test Certificates | other |
| mounting position | Any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| product variations | Pack of 10 |
| Packaging Dimension | 59,00 x 133,00 x 47,00 |
| Product Description | NEOZED fuse-link, D03, 80 A, gG, Un AC: 400 V, Un DC: 250 V |
| operational current | |
| product designation | NEOZED fuse link |
| protection class IP | IP20, with connected conductors |
| Colour code (EF000931) | Blue |
| Minimum order quantity | 10 |
| environmental category | Up to 45°C at 95 % rel. humidity |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | NEOZED fuse link |
| ● at AC / rated value | 400 V |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 80.0 |
| Rated voltage (EF000228) | 400 |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 30 °C / rated value | 78.4 A |
| ● at 40 °C / rated value | 76 A |
| ● at 45 °C / rated value | 73.6 A |
| ● at 50 °C / rated value | 72 A |
| ● at 55 °C / rated value | 70.4 A |
| ● at 60 °C / rated value | 68.8 A |
| Construction size (EF002566) | D03 |
| Package size unit of measure | MM |
| color coding of the fuse link | Blue |
| Utilization category (EF002572) | gL/gG (cable protection/equipment protection) |
| operating voltage / rated value | 400 V |
| operating class of the fuse link | gG |
| operational current / rated value | 80 A |
| Article Number (Market Facing Number) | 5SE2280 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| size of fuse system / according to EN 60269-1 | D03 |
| Region Specific PriceGroup / Headquarter Price Group | 12K / 1BM |
| switching capacity current / according to IEC 60947-2 / rated value | 50 kA |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| breaking capacity maximum short-circuit current (Icu) / at AC / rated value | 50 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 5.4 W |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationUK Declaration of ConformitySpecial Test CertificateTest CertificatesotherMiscellaneousType Test Certificates/Test ReportMiscellaneousEnvironmental Confirmations | General Product Approval |
Product Description
NEOZED fuse cartridge, 400V, service class gL/gG, size D03,80A ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Multipurpose Order 10 Units ** ). Cancelations and returns limited. Consult cond
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
