5SE1310

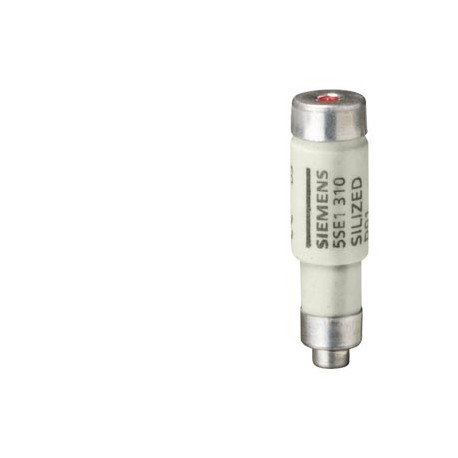

5SE1310 SIEMENS NEOZED fuse-link, D01, 10 A, gR, Un AC: 400 V, Un DC: 250 V, SILIZED
$0.00USD
4436 in stock
Key Specifications
:
EAN:4001869298665
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869298665 |
| UPC | Not available |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| ● at DC | 250 V |
| Group Code | P310 |
| net weight | 7 g |
| ● maximum | 40 °C |
| ● minimum | 40 °C |
| Confirmation | |
| Metal Factor | LHP----- |
| Date5/15/2022 | |
| Product Group | 5540 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361010 |
| Product family | SILIZED Design |
| supply voltage | |
| Net Weight (kg) | 0,007 Kg |
| Country of origin | Slovenia |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 40,00 x 113,00 x 12,00 |
| Product Description | NEOZED fuse-link, D01, 10 A, gR, Un AC: 400 V, Un DC: 250 V, SILIZED |
| product designation | NEOZED fuse link |
| design of the product | SILIZED |
| Colour code (EF000931) | Red |
| Minimum order quantity | 10 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 10.0 |
| Rated voltage (EF000228) | 400 |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Construction size (EF002566) | D01 |
| Package size unit of measure | MM |
| color coding of the fuse link | Red |
| Utilization category (EF002572) | gR (general purpose semiconductor protection) |
| operating voltage / rated value | 400 V |
| operating class of the fuse link | gR |
| operational current / rated value | 10 A |
| Article Number (Market Facing Number) | 5SE1310 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| size of fuse system / according to EN 60269-1 | D01 |
| Region Specific PriceGroup / Headquarter Price Group | 15J / 1DM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| breaking capacity maximum short-circuit current (Icu) / at AC / rated value | 50 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 6.9 W |
| General Product ApprovalDeclaration of ConformityotherConfirmationEnvironmental ConfirmationsMiscellaneous | General Product Approval |
Product Description
NEOZED-SILIZED fuse cartridge, p/semiconductor protection, 400V AC/250V DC, gR, size D01, 10A ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 10 Units ** ). Cancelations and re
