5SD8050

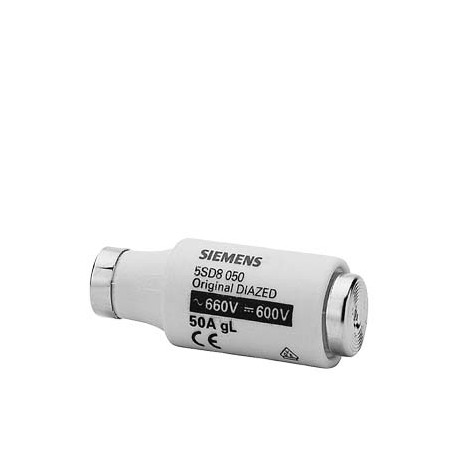

5SD8050 SIEMENS DIAZED fuse link 690 V for cable and line protection Operating class gG Size DIII, E33, 50 A
$0.00USD
4745 in stock
Key Specifications
:
EAN:4001869021720
UPC:754554215037
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869021720 |
| UPC | 754554215037 |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 79 g |
| ● maximum | 40 °C |
| ● minimum | -5 °C |
| Confirmation | |
| Metal Factor | L-P----- |
| Date5/14/2022 | |
| Product Group | 5535 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361050 |
| Product family | SENTRON DIAZED Fuse Systems |
| power loss [W] | 4.6 W |
| Net Weight (kg) | 0,079 Kg |
| Country of origin | Slovenia |
| mounting position | Any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 160,00 x 160,00 x 70,00 |
| Product Description | DIAZED fuse link 690 V for cable and line protection Operating class gG Size DIII, E33, 50 A |
| operational current | |
| product description | Using screw adapter or adapter sleeves |
| product designation | DIAZED fuse |
| protection class IP | IP20, with connected conductors |
| design of the product | For cable and line protection |
| Colour code (EF000931) | White |
| Minimum order quantity | 5 |
| environmental category | Up to 45°C at 95 % rel. humidity |
| supply voltage / at DC | 600 V |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | DIAZED fuse link |
| ● at AC / rated value | 50 A |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 50 |
| Rated voltage (EF000228) | 690 |
| Export Control Regulations | AL : N / ECCN : N |
| Environmental Confirmations | |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● at 30 °C / rated value | 49 A |
| ● at 40 °C / rated value | 47.5 A |
| ● at 45 °C / rated value | 46 A |
| ● at 50 °C / rated value | 45 A |
| ● at 55 °C / rated value | 44 A |
| ● at 60 °C / rated value | 43 A |
| Construction size (EF002566) | DIII |
| Package size unit of measure | MM |
| color coding of the fuse link | white |
| tripping characteristic class | Other |
| Utilization category (EF002572) | gL/gG (cable protection/equipment protection) |
| operating class of the fuse link | gG |
| Release characteristic (EF000889) | Other |
| Article Number (Market Facing Number) | 5SD8050 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| size of fuse system / according to EN 60269-1 | DIII |
| Region Specific PriceGroup / Headquarter Price Group | 13I / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| switching capacity current / at DC / according to IEC 60947-2 / rated value | 8 kA |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 4.6 W |
| General Product ApprovalDeclaration of ConformityTest CertificatesotherConfirmationUK Declaration of ConformityType Test Certificates/Test ReportMiscellaneousotherEnvironmental Confirmations | General Product Approval |
Product Description
Diazed 660V fuse, 50Hz for cable and conductor protection, service class gL/gG size DII,I,, thread E33, 50A (** ATTENTION : Price per 1 Unit and Minimum Quantity / Order Multiple 5 Units ** ). Cancela
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
