5SD7581-3

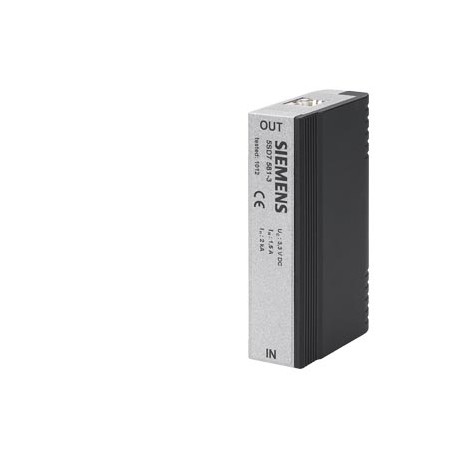

5SD7581-3 SIEMENS Overvoltage protection for Ethernet interfaces up to 10 Gbit/s, including POE
$0.00USD
4098 in stock
Key Specifications
:
EAN:4001869452074
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869452074 |
| UPC | Not available |
| ETIM | 5 |
| depth | 65 mm |
| width | 102 mm |
| eClass | 6 |
| height | 25 mm |
| Group Code | P310 |
| break time | |
| net weight | 289 g |
| ● maximum | 85 °C |
| ● minimum | 40 °C |
| Confirmation | |
| Date5/9/2022 | |
| Metal Factor | L-B----- |
| Product Group | 5524 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85363090 |
| Product family | Ordering Data Overview |
| Net Weight (kg) | 0,318 Kg |
| protection level | |
| Country of origin | Germany |
| discharge current | |
| operating voltage | |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 73,00 x 110,00 x 40,00 |
| Product Description | Overvoltage protection for Ethernet interfaces up to 10 Gbit/s, including POE |
| product designation | Surge protection device |
| protection class IP | IP20 |
| ● at DC / maximum | 3.3 V |
| Frequency (EF000416) | - |
| overvoltage category | II |
| design of the product | Surge arrester 5SD7 for measuring and control technology |
| ampacity / rated value | 1.5 A |
| Connection 1 (EF000321) | RJ45 |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| ● rated value / maximum | 3.3 V |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | - |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| material / of the enclosure | ZnAI4Cu1 |
| ● for symmetrical circuit | 0.012 nF |
| Package size unit of measure | MM |
| continuous operating voltage | |
| ● for asymmetrical circuit | 1 pF |
| Limiting frequency (EF004015) | - |
| Nominal voltage AC (EF008798) | ['-', '-'] |
| Nominal voltage DC (EF008799) | ['-', '-'] |
| type of electrical connection | RJ45 |
| consumed current / rated value | 1.5 A |
| Nominal load current (EF004219) | 1.5 |
| residual voltage / between L and L | |
| Explosion-tested version (EF004191) | false |
| Voltage protection level (EF003525) | 700.0 |
| Pro-active thermo-control (EF008800) | false |
| Article Number (Market Facing Number) | 5SD7581-3 |
| Max. continuous voltage AC (EF004198) | - |
| Max. continuous voltage DC (EF004777) | 3.3 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ambient temperature / during operation | |
| power pulse current / at (10/1000) µs | 40 A |
| insertion loss / for symmetrical circuit | |
| With remote signalling contact (EF000422) | false |
| voltage limitation / of the output voltage | |
| product component / remote signaling contact | No |
| product function / surge arrester monitoring | No |
| Voltage protection level core/core (EF004233) | 700 |
| ● between L and N / for symmetrical circuit | 1 ns |
| Voltage protection level core/earth (EF004234) | - |
| design of the product / explosion-proof design | No |
| capacity / between switched connecting terminals | |
| Lightning impulse current (10/350 µs) (EF000421) | - |
| Nominal discharge surge current (8/20) (EF004214) | 0.1 |
| ● between L or N and PE / for symmetrical circuit | 100 ns |
| Region Specific PriceGroup / Headquarter Price Group | 12G / 1BK |
| ● for rated discharge current / for symmetrical circuit | 15 V |
| protection level / between L and N / for symmetrical circuit | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2012 |
| ● with characteristic wave impedance 100 ohm / up to 5 MHz / typical | 1 dB |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● between L and L / for symmetrical circuit / at (8/20) µs / rated value | 100 A |
| General Product ApprovalDeclaration of ConformityotherConfirmationMiscellaneous | General Product Approval |
| ● with spike / with pulse curve shape C2 / at (10 kV/5 kA) / acc. to IEC 61643-21 | 700 V |
| ● between sum of all L and PE / for asymmetrical circuit / at (8/20) µs / rated value | 2 kA |
| ● with pulse curve shape C2 / at (10 kV/5 kA) / to signal ground / acc. to IEC 61643-21 | 700 V |
| ● between L and L / at rate of voltage rise 1 kV/µs / for spike or statistical distribution in relation to hazard level / for symmetrical circuit | 9 V |
| ● between L and PE / for asymmetrical circuit / at rate of voltage rise 1 kV/µs / for spike or statistical distribution in relation to hazard level | 700 V |
Product Description
SURGE PROTECTION FOR ETHERNET-INTERFACES. Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
