5SD7434-1

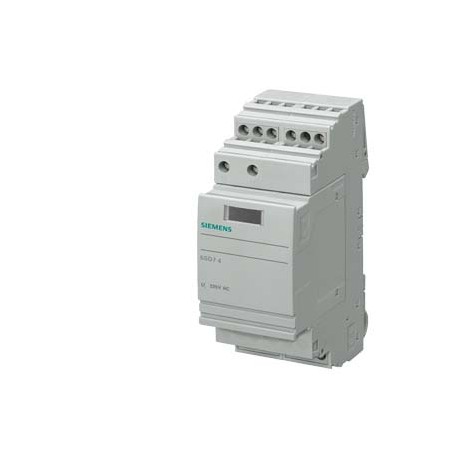

5SD7434-1 SIEMENS Type 3 surge arrester Requirement class D Rated voltage UN 230 V UC 253V AC, 4-pole for 3-..
$0.00USD
3450 in stock
Key Specifications
:Value
EAN:4001869340418
UPC:Not available
Depth:70.9 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869340418 |
| UPC | Not available |
| Depth | 70.9 mm |
| Notes | Product is no longer availableSucessor:Further information about local contact: www.siemens.com/lowvoltage/contactIf you need assistance please contact our local Siemens office |
| Width | 35.4 mm |
| Height | 90 mm |
| Standard | IEC 61643-11: 2011, EN 61643-11: 2012 |
| ● at AC | 250 ... 250 |
| ● at DC | 125 V (200 mA DC) |
| Group Code | P310 |
| Net weight | 134 g |
| Price Group | 12G |
| ● maximum | 264 V |
| Load current | 26 A (30 °C) |
| Metal Factor | L-P----- |
| TOV behavior | |
| Mounting type | DIN rail NS 35 |
| Product Group | 5524 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Response time | |
| Signal design | Defect signaling contact |
| Commodity Code | 85363090 |
| Design of pole | 4 |
| Product family | Not available |
| Net Weight (kg) | 0,159 Kg |
| Product version | Surge arrester |
| Protection level | |
| Country of origin | Germany |
| Discharge current | |
| Operating voltage | 230 / 400 V AC |
| Tightening torque | 0.75 ... 0.85 |
| ● at (8/20) µs | 3 kA |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product discontinued since: 11.02.2020 |
| Packaging Quantity | 1 |
| Shock acceleration | 30 gn |
| Degree of pollution | 2 |
| Number of SPD ports | 1 |
| Operating frequency | 50/60 Hz |
| Packaging Dimension | 95,00 x 41,00 x 82,00 |
| Product Description | Type 3 surge arrester Requirement class D Rated voltage UN 230 V UC 253V AC, 4-pole for 3-phase power supply |
| Product designation | Surge protection device |
| ● between L and N | 1.4 kV |
| ● between N and L | 1.2 kV |
| ● finely stranded | 0.2 ... 2.5 |
| ● between L and PE | 1.5 kV |
| ● between N and PE | 100 A (255 V a.c.) |
| Wire stripping length | 8 mm |
| Size of surge arrester | 2MW |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| ● at TOV test voltage | 440 V AC (120 min / withstand mode) |
| ● between L and (PE)N | 25 ns |
| ● for rigid conductor | 0.2 ... 4 |
| ● Test Class I, Type 1 | No |
| ● Test Class II, Type 2 | No |
| Category type 2 (EF004230) | false |
| Export Control Regulations | ECCN : N / AL : N |
| Max. PV-voltage (EF008795) | - |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| ● Test Class III, Type 3 | Yes |
| Material / of the enclosure | PA 6.6-FR |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Type of distribution system | TT, TN-S |
| Construction size (EF002566) | 2 modular spacing |
| Continuous operating voltage | |
| Insulation resistance (Riso) | 5 MΩ |
| Package size unit of measure | MM |
| Protective conductor current | 5 µA (255 V AC) |
| Nominal voltage AC (EF004220) | - |
| Nominal voltage DC (EF004221) | - |
| Type of electrical connection | Screw terminal |
| ● at TOV test voltage (L-N) | 440 V AC (5 s / withstand mode) / 440 V AV AC (120 min / withstand mode) |
| ● between PE and N and/or L | 1.5 kV |
| Product Dimensions (W x L x H) | Not available |
| ● at TOV test voltage (N-PE) | 1200 V (200 ms / withstand mode) |
| Integrated backup fuse (EF008797) | false |
| ● for finely stranded conductor | 0.2 ... 2.5 |
| Combustibility class acc. to UL 94 | V0 |
| System configuration DC (EF009926) | 0 |
| System configuration IT (EF009927) | 0 |
| System configuration TN (EF009928) | 0 |
| System configuration TT (EF009931) | 0 |
| Connectable conductor cross-section | |
| Designation of the protective paths | L-N, L-PE, N-PE |
| Signalling at the device (EF004241) | None |
| Voltage protection level (EF003525) | - |
| Degree of protection (IP) (EF005474) | IP20 |
| Relative humidity / during operation | 5 % ... 95 % |
| System configuration TN-C (EF009929) | 0 |
| System configuration TN-S (EF009930) | 0 |
| Article Number (Market Facing Number) | 5SD7434-1 |
| Max. continuous voltage AC (EF004198) | 264 |
| Max. continuous voltage DC (EF004777) | - |
| System configuration other (EF009932) | 0 |
| Ambient temperature / during operation | -40 °C ... 70 °C |
| Short-circuit rating (SCCR) / at 264 V | 1.5 kA |
| System configuration TN-C-S (EF009933) | 0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Follow current extinguishing capability | |
| Voltage protection level L-N (EF004236) | 1.2 |
| SPD classification / acc. to EN 61643-11 | |
| Voltage protection level N-PE (EF008796) | 1.5 |
| With remote signalling contact (EF000422) | true |
| Overvoltage category / acc. to IEC 61010-1 | III |
| Settable response factor / of trip current | 1.6 |
| Connection type of remote signaling contact | M3 |
| Fuse protection type / at V-shaped connection | 25 A (gG / B / C) |
| Design of the thread / of the connection screw | M3 |
| Max. discharge surge current (8/20) (EF012274) | - |
| Nominal discharge surge current (8/20) (EF004214) | - |
| Protection class IP / at connection all terminals | IP20 |
| Tightening torque / for remote signaling contacts | 0.8 N·m |
| Ambient temperature / during storage and transport | -40 °C ... 70 °C |
| Number of conductors (without earthing) (EF001148) | - |
| Short-circuit breaking capacity (Isccr) (EF012627) | 1.5 |
| Operating current / of the remote-signaling contacts | |
| Operating voltage / of the remote-signaling contacts | |
| Switching function / of the remote-signaling contacts | N/C contact |
| ● for remote signaling contacts / for rigid conductor | 0.2 ... 4 |
| AWG number / as coded connectable conductor cross section | 24 ... 12 |
| Installation altitude / at height above sea level / maximum | 2 000 m |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 2.5 |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 4.0 |
| ● for finely stranded conductor / for remote signaling contacts | 0.2 ... 2.5 |
| Wire stripping length / of the cable / for remote signaling contacts | 8 mm |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Vibrational acceleration / at 5 Hz ... 500 Hz / limited to 2,5 h / per axis | 5 gn |
