5SD7424-0

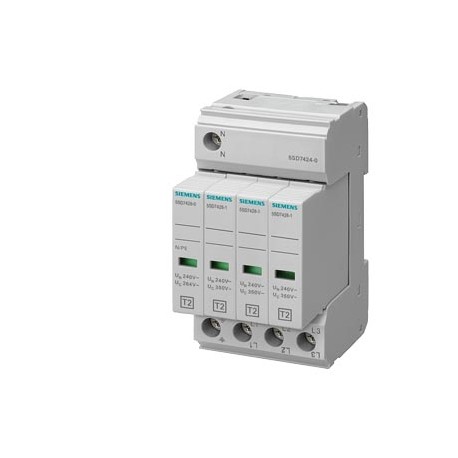

5SD7424-0 SIEMENS Surge arrester Type 2 Requirement class C, UC 350V Pluggable protective modules 4-pole, 3+..
$0.00USD
3165 in stock
Key Specifications
:
EAN:4001869340333
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869340333 |
| UPC | Not available |
| ETIM | 5 |
| Width | 49.2 mm |
| depth | 71.5 mm |
| Height | 90 mm |
| eClass | 6 |
| standard | IEC 61643-11: 2011, EN 61643-11: 2012 |
| Group Code | P310 |
| net weight | 382 g |
| Accessories | 3 x 5SD7428-1 + 1 x 5SD7428-0 |
| ● maximum | 350 V |
| Metal Factor | L-P----- |
| TOV behavior | |
| Product Group | 5524 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| signal design | optical |
| Commodity Code | 85363090 |
| Product family | Basic devices |
| design of pole | 3+N/PE |
| Net Weight (kg) | 0,401 Kg |
| Product version | Surge arrester |
| stripped length | 16 mm |
| fastening method | DIN rail NS 35 |
| protection level | |
| residual voltage | |
| Country of origin | Germany |
| discharge current | |
| operating voltage | 230 V |
| tightening torque | 4.3 ... 4.7 |
| ● at (8/20) µs | 20 kA |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| shock acceleration | 30 gn |
| Degree of pollution | 2 |
| Packaging Dimension | 95,00 x 57,00 x 83,00 |
| Product Description | Surge arrester Type 2 Requirement class C, UC 350V Pluggable protective modules 4-pole, 3+1 circuit for TN-S and TT systems Narrow design |
| number of SPD ports | 1 |
| product designation | Surge protection device |
| ● between N and L | 1.4 kV |
| ● finely stranded | 2.5 ... 16 |
| ● between N and PE | 264 V |
| — at 2 kA / maximum | 1 kV |
| — at 4 kA / maximum | 1.1 kV |
| — at 5 kA / maximum | 1.2 kV |
| size of surge arrester | 2,7 MW |
| — at 10 kA / maximum | 1.3 kV |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● between L and (PE)N | 350 V |
| ● for rigid conductor | 2.5 ... 25 |
| ● Test Class I, Type 1 | No |
| ● Test Class II, Type 2 | Yes |
| Category type 2 (EF004230) | true |
| Export Control Regulations | AL : N / ECCN : N |
| Max. PV-voltage (EF008795) | - |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| ● Test Class III, Type 3 | No |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| material / of the enclosure | PBT |
| standards / according to UL | UL 1449 edition 4 |
| type of distribution system | TT, TN-S |
| ● 1 phase / at (8/20) µs | 40 kA |
| Construction size (EF002566) | Other |
| Package size unit of measure | MM |
| continuous operating voltage | |
| Nominal voltage AC (EF004220) | - |
| Nominal voltage DC (EF004221) | - |
| type of electrical connection | Screw terminal |
| ● at TOV test voltage (L-N) | 415 V AC (5 s / withstand mode) / 440 V AC (120 min / safe failure mode) |
| ● between PE and N and/or L | 1.5 kV |
| ● at TOV test voltage (N-PE) | 1200 V (200 ms / withstand mode) |
| Integrated backup fuse (EF008797) | false |
| leakage current / according to UL | 20 kA |
| net weight [lb] / according to UL | 0.84 lb |
| ● for finely stranded conductor | 2.5 ... 16 |
| System configuration DC (EF009926) | 0 |
| System configuration IT (EF009927) | 0 |
| System configuration TN (EF009928) | 0 |
| System configuration TT (EF009931) | 0 |
| Signalling at the device (EF004241) | None |
| Voltage protection level (EF003525) | - |
| connectable conductor cross-section | |
| designation of the protective paths | L-N, N-PE |
| gross weight [lb] / according to UL | 0.9 lb |
| Degree of protection (IP) (EF005474) | IP20 |
| System configuration TN-C (EF009929) | 0 |
| System configuration TN-S (EF009930) | 0 |
| relative humidity / during operation | 5 % ... 95 % |
| ● response time / between N and PE | 100 ns |
| Article Number (Market Facing Number) | 5SD7424-0 |
| Max. continuous voltage AC (EF004198) | - |
| Max. continuous voltage DC (EF004777) | - |
| System configuration other (EF009932) | 0 |
| System configuration TN-C-S (EF009933) | 0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| fuse protection type / for T-connector | 315 A AC (gG) |
| short-circuit rating (SCCR) / at 264 V | 25 kA |
| Voltage protection level L-N (EF004236) | 1.4 |
| combustibility class according to UL 94 | V0 |
| follow current extinguishing capability | |
| ● response time / between L and (PE)N | 25 ns |
| Voltage protection level N-PE (EF008796) | 1.5 |
| With remote signalling contact (EF000422) | false |
| SPD classification / according to EN 61643-11 | |
| fuse protection type / at V-shaped connection | 63 A AC (gG) |
| type of distribution system / according to UL | 3Y |
| Max. discharge surge current (8/20) (EF012274) | - |
| design of the thread / of the connection screw | M5 |
| overvoltage category / according to IEC 61010-1 | III |
| adjustable response factor / of tripping current | 1.6 |
| Measured Limiting Voltage (MLV) / between L and L | 3.28 kV |
| Measured Limiting Voltage (MLV) / between L and N | 2 kV |
| Nominal discharge surge current (8/20) (EF004214) | 40.0 |
| protection class IP / at connection all terminals | IP20 |
| — at rated value of discharge current / maximum | 1.5 kV |
| Number of conductors (without earthing) (EF001148) | - |
| Short-circuit breaking capacity (Isccr) (EF012627) | 25.0 |
| ambient temperature / during storage and transport | -40 °C ... 80 °C |
| Region Specific PriceGroup / Headquarter Price Group | 12G / 1BK |
| designation of the protective paths / according to UL | L-L, L-N, L-G, N-G |
| installation altitude above sea level / according to UL | 6 562 ft |
| type of surge protective device (SPD) / according to UL | 4CA |
| AWG number / as coded connectable conductor cross section | 12 ... 4 |
| installation altitude / at height above sea level / maximum | 2 000 m |
| Measured Limiting Voltage (MLV) / between L and Ground (GND) | 2.08 kV |
| Measured Limiting Voltage (MLV) / between N and Ground (GND) | 0.95 kV |
| Maximum Continuous Operating Voltage (MCOV) / between L and L | 700 V |
| Maximum Continuous Operating Voltage (MCOV) / between L and N | 350 V |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 16.0 |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 25.0 |
| response value of the surge voltage / at 6 kV / at (1.2/50) µs | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| Maximum Continuous Operating Voltage (MCOV) / between L and Ground (GND) | 350 V |
| Maximum Continuous Operating Voltage (MCOV) / between N and Ground (GND) | 264 V |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| vibrational acceleration / at 5 Hz ... 500 Hz / limited to 2,5 h / per axis | 5 gn |
| AWG number / as coded connectable conductor cross section / according to UL / maximum | 2 |
| AWG number / as coded connectable conductor cross section / according to UL / minimum | 14 |
| Ambient temperature / during operation / minimum permissible ... ambient temperature / during operation / maximum permissible | -40 °C ... 80 °C |
Product Description
Surge unloader, 350 VAC, requirement class C, types 2, class II, 4 poles, TT and TN-S networks, without remote warning. Cancelations and returns limited. Consult conditions.
