5SD7412-2

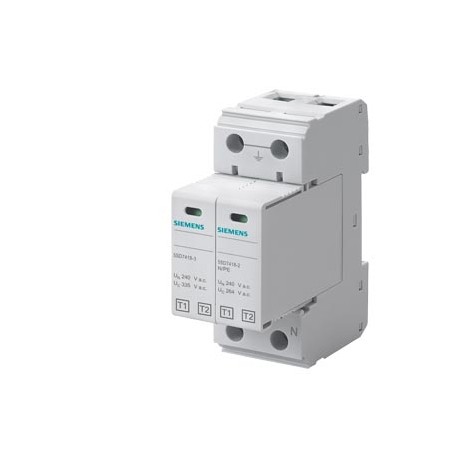

5SD7412-2 SIEMENS Lightning arrester type 1, 12.5 kA, lightning protection class III and IV, for 3-wire netw..
$0.00USD
3242 in stock
Key Specifications
:
EAN:4001869459561
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869459561 |
| UPC | Not available |
| ETIM | 5 |
| Width | 35.6 mm |
| depth | 77.5 mm |
| Height | 89.9 mm |
| eClass | 6 |
| standard | IEC 61643-11: 2011, EN 61643-11: 2012 |
| Group Code | P310 |
| net weight | 328 g |
| Accessories | 1 x 5SD7418-3 + 1 x 5SD7418-2 |
| ● maximum | 335 V |
| Metal Factor | L-B----- |
| TOV behavior | |
| Product Group | 5524 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| signal design | optical |
| Commodity Code | 85363090 |
| Product family | Basic devices |
| design of pole | 1+N/PE |
| Net Weight (kg) | 0,354 Kg |
| Product version | Combination surge arresters |
| stripped length | 16 mm |
| fastening method | DIN rail NS 35 |
| protection level | |
| residual voltage | |
| Country of origin | Germany |
| discharge current | |
| operating voltage | 230 V |
| tightening torque | 4.3 ... 4.7 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| shock acceleration | 30 gn |
| Degree of pollution | 2 |
| Packaging Dimension | 41,00 x 106,00 x 78,00 |
| Product Description | Lightning arrester type 1, 12.5 kA, lightning protection class III and IV, for 3-wire networks (L, N, PE), UC 335V/264V AC (L-N/N-PE), Mechanical defect indication |
| number of SPD ports | 1 |
| product designation | Surge protection device |
| ● between L and N | 39 |
| ● between N and L | 1.2 kV |
| ● finely stranded | 1.5 ... 25 |
| ● between L and PE | 2 kV |
| ● between N and PE | 264 V |
| — at 3 kA / maximum | 0.9 kV |
| — at 5 kA / maximum | 1 kV |
| size of surge arrester | 2 TE |
| — at 10 kA / maximum | 1.1 kV |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● between L and (PE)N | 335 V |
| ● for rigid conductor | 1.5 ... 35 |
| ● Test Class I, Type 1 | Yes |
| ● Test Class II, Type 2 | Yes |
| Category type 2 (EF004230) | true |
| Export Control Regulations | AL : N / ECCN : N |
| Max. PV-voltage (EF008795) | - |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| ● Test Class III, Type 3 | No |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| material / of the enclosure | PA 6.6 / PBT |
| type of distribution system | TT, TN-S |
| Construction size (EF002566) | 2 modular spacing |
| Package size unit of measure | MM |
| continuous operating voltage | |
| Nominal voltage AC (EF004220) | - |
| Nominal voltage DC (EF004221) | - |
| type of electrical connection | Screw terminal |
| ● at TOV test voltage (L-N) | 415 V AC (5 s / withstand mode) |
| ● at TOV test voltage (N-PE) | 1200 V (200 ms / withstand mode) |
| Integrated backup fuse (EF008797) | false |
| ● for finely stranded conductor | 1.5 ... 25 |
| System configuration DC (EF009926) | 0 |
| System configuration IT (EF009927) | 0 |
| System configuration TN (EF009928) | 0 |
| System configuration TT (EF009931) | 0 |
| Signalling at the device (EF004241) | None |
| Voltage protection level (EF003525) | - |
| connectable conductor cross-section | |
| designation of the protective paths | L-N, L-PE, N-PE |
| ● between L and N / at (8/20) µs | 50 kA |
| Degree of protection (IP) (EF005474) | IP20 |
| System configuration TN-C (EF009929) | 0 |
| System configuration TN-S (EF009930) | 0 |
| apparent power consumption / maximum | 270 mVA |
| relative humidity / during operation | 5 % ... 95 % |
| ● between N and PE / at (8/20) µs | 50 kA |
| ● response time / between N and PE | 100 ns |
| Article Number (Market Facing Number) | 5SD7412-2 |
| Max. continuous voltage AC (EF004198) | - |
| Max. continuous voltage DC (EF004777) | - |
| System configuration other (EF009932) | 0 |
| charge of the flash / at (10/350) µs | |
| System configuration TN-C-S (EF009933) | 0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| fuse protection type / for T-connector | 160 A AC (gG) |
| short-circuit rating (SCCR) / at 264 V | 25 kA |
| Voltage protection level L-N (EF004236) | 1.2 |
| combustibility class according to UL 94 | V0 |
| follow current extinguishing capability | |
| total discharge current / at (8/20) µs | 50 kA |
| ● between L and (PE)N / at (8/20) µs | 12.5 kA |
| ● response time / between L and (PE)N | 25 ns |
| Voltage protection level N-PE (EF008796) | - |
| With remote signalling contact (EF000422) | false |
| ● charge of the flash / between L and N | 6.25 A·s |
| ● charge of the flash / between N and PE | 25 A·s |
| SPD classification / according to EN 61643-11 | |
| fuse protection type / at V-shaped connection | 80 A AC (gG) |
| Max. discharge surge current (8/20) (EF012274) | - |
| design of the thread / of the connection screw | M5 |
| lightning current peak value / at (10/350) µs | |
| specific energy of the flash / at (10/350) µs | |
| overvoltage category / according to IEC 61010-1 | III |
| adjustable response factor / of tripping current | 1.6 |
| Nominal discharge surge current (8/20) (EF004214) | - |
| protection class IP / at connection all terminals | IP20 |
| total lightning impulse current / at (10/350) µs | 25 kA |
| — at rated value of discharge current / maximum | 1.2 kV |
| Number of conductors (without earthing) (EF001148) | - |
| Short-circuit breaking capacity (Isccr) (EF012627) | 25.0 |
| ambient temperature / during storage and transport | -40 °C ... 80 °C |
| ● lightning current peak value / between L and N | 12.5 kA |
| ● lightning current peak value / between N and PE | 50 kA |
| Region Specific PriceGroup / Headquarter Price Group | 12G / 1BK |
| AWG number / as coded connectable conductor cross section | 15 ... 2 |
| installation altitude / at height above sea level / maximum | 2 000 m |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25.0 |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35.0 |
| response value of the surge voltage / at 6 kV / at (1.2/50) µs | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| vibrational acceleration / at 5 Hz ... 500 Hz / limited to 2,5 h / per axis | 7.5 gn |
| Ambient temperature / during operation / minimum permissible ... ambient temperature / during operation / maximum permissible | -40 °C ... 80 °C |
