5SD7412-1

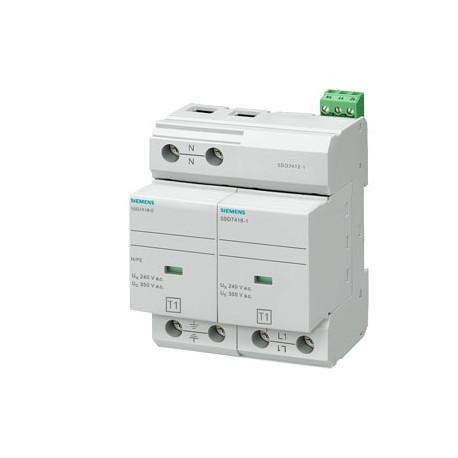

5SD7412-1 SIEMENS Lightning arresters, type 1 Requirement class B, UC 350V Pluggable protective modules 2-po..
$0.00USD
3001 in stock
Key Specifications
:
EAN:4001869340227
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869340227 |
| UPC | Not available |
| ETIM | 5 |
| Width | 71.2 mm |
| depth | 71.2 mm |
| Height | 94.8 mm |
| eClass | 6 |
| standard | IEC 61643-11: 2011, EN 61643-11: 2012 |
| Group Code | P310 |
| net weight | 742 g |
| Accessories | 1 x 5SD7418-1 + 1 x 5SD7418-0 |
| ● maximum | 350 V |
| Metal Factor | L-P----- |
| TOV behavior | |
| Product Group | 5524 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| signal design | Optical, remote signaling contact |
| Commodity Code | 85363090 |
| Product family | Basic devices |
| design of pole | 1+N/PE |
| Net Weight (kg) | 0,730 Kg |
| Product version | Lightning arresters |
| stripped length | 18 mm |
| fastening method | DIN rail NS 35 |
| protection level | |
| residual voltage | |
| Country of origin | Germany |
| discharge current | |
| operating voltage | 230 V |
| tightening torque | 4.5 ... 4.5 |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| shock acceleration | 25 gn |
| Degree of pollution | 2 |
| Packaging Dimension | 95,00 x 77,00 x 82,00 |
| Product Description | Lightning arresters, type 1 Requirement class B, UC 350V Pluggable protective modules 2-pole, 1+1 circuit for TN-S and TT systems with remote display |
| number of SPD ports | 1 |
| product designation | Surge protection device |
| ● between L and N | 160 |
| ● between N and L | 1.5 kV |
| ● finely stranded | 2.5 ... 25 |
| ● between L and PE | 160 |
| ● between N and PE | 350 V |
| size of surge arrester | 4 TE |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● between L and (PE)N | 350 V |
| ● for rigid conductor | 2.5 ... 35 |
| ● Test Class I, Type 1 | Yes |
| ● Test Class II, Type 2 | No |
| Category type 2 (EF004230) | false |
| Export Control Regulations | AL : N / ECCN : N |
| Max. PV-voltage (EF008795) | - |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| ● Test Class III, Type 3 | No |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| material / of the enclosure | PBT |
| standards / according to UL | UL 1449 edition 4 |
| type of distribution system | TT, TN-S |
| Construction size (EF002566) | 4 modular spacing |
| Package size unit of measure | MM |
| continuous operating voltage | |
| Nominal voltage AC (EF004220) | - |
| Nominal voltage DC (EF004221) | - |
| type of electrical connection | Screw terminal |
| ● at TOV test voltage (L-N) | 415 V AC (5 s / withstand mode) / 457 V AC (120 min / safe failure mode) |
| ● between PE and N and/or L | 1.5 kV |
| ● at TOV test voltage (N-PE) | 1200 V (200 ms / withstand mode) |
| Integrated backup fuse (EF008797) | false |
| leakage current / according to UL | 20 kA |
| net weight [lb] / according to UL | 1.64 lb |
| ● for finely stranded conductor | 2.5 ... 25 |
| System configuration DC (EF009926) | 0 |
| System configuration IT (EF009927) | 0 |
| System configuration TN (EF009928) | 0 |
| System configuration TT (EF009931) | 0 |
| Signalling at the device (EF004241) | Optic |
| Voltage protection level (EF003525) | - |
| connectable conductor cross-section | |
| designation of the protective paths | L-N, L-PE, N-PE |
| gross weight [lb] / according to UL | 1.71 lb |
| ● between L and N / at (8/20) µs | 50 kA |
| Degree of protection (IP) (EF005474) | IP20 |
| System configuration TN-C (EF009929) | 0 |
| System configuration TN-S (EF009930) | 0 |
| relative humidity / during operation | 5 % ... 95 % |
| ● between L and PE / at (8/20) µs | 50 kA |
| ● between N and PE / at (8/20) µs | 100 kA |
| ● response time / between N and PE | 100 ns |
| Article Number (Market Facing Number) | 5SD7412-1 |
| Max. continuous voltage AC (EF004198) | - |
| Max. continuous voltage DC (EF004777) | - |
| System configuration other (EF009932) | 0 |
| charge of the flash / at (10/350) µs | |
| System configuration TN-C-S (EF009933) | 0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| fuse protection type / for T-connector | 315 A AC (gG) |
| short-circuit rating (SCCR) / at 264 V | 50 kA |
| Voltage protection level L-N (EF004236) | 1.5 |
| combustibility class according to UL 94 | V0 |
| follow current extinguishing capability | |
| ● between L and (PE)N / at (8/20) µs | 25 kA |
| ● response time / between L and (PE)N | 100 ns |
| Voltage protection level N-PE (EF008796) | 1.5 |
| With remote signalling contact (EF000422) | true |
| ● charge of the flash / between L and N | 12.5 A·s |
| ● charge of the flash / between L and PE | 12.5 A·s |
| ● charge of the flash / between N and PE | 50 A·s |
| connection type of remote signaling contact | M2 |
| SPD classification / according to EN 61643-11 | |
| fuse protection type / at V-shaped connection | 125 A AC (gG) |
| type of distribution system / according to UL | 1S |
| Max. discharge surge current (8/20) (EF012274) | - |
| design of the thread / of the connection screw | M5 |
| lightning current peak value / at (10/350) µs | |
| specific energy of the flash / at (10/350) µs | |
| overvoltage category / according to IEC 61010-1 | III |
| adjustable response factor / of tripping current | 1.6 |
| Measured Limiting Voltage (MLV) / between L and N | 1.35 kV |
| Nominal discharge surge current (8/20) (EF004214) | - |
| protection class IP / at connection all terminals | IP20 |
| tightening torque / for remote signaling contacts | 0.25 N·m |
| total lightning impulse current / at (10/350) µs | 50 kA |
| — at rated value of discharge current / maximum | 1.5 kV |
| Number of conductors (without earthing) (EF001148) | - |
| Short-circuit breaking capacity (Isccr) (EF012627) | 50.0 |
| ambient temperature / during storage and transport | -40 °C ... 80 °C |
| ● lightning current peak value / between L and N | 25 kA |
| ● lightning current peak value / between L and PE | 25 kA |
| ● lightning current peak value / between N and PE | 100 kA |
| Region Specific PriceGroup / Headquarter Price Group | 12G / 1BK |
| designation of the protective paths / according to UL | L-N, L-G, N-G |
| switching function / of the remote signaling contacts | PDT contact |
| installation altitude above sea level / according to UL | 6 562 ft |
| type of surge protective device (SPD) / according to UL | 4CA |
| ● for remote signaling contacts / for rigid conductor | 0.14 ... 1.5 |
| AWG number / as coded connectable conductor cross section | 13 ... 2 |
| installation altitude / at height above sea level / maximum | 2 000 m |
| Measured Limiting Voltage (MLV) / between L and Ground (GND) | 1.57 kV |
| Measured Limiting Voltage (MLV) / between N and Ground (GND) | 1.08 kV |
| operating voltage / of the remote signaling contacts / at AC | 12 ... 250 |
| Maximum Continuous Operating Voltage (MCOV) / between L and N | 264 V |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25.0 |
| operational current / of the remote signaling contacts / at AC | 10 mA ... 1 A |
| stripped length / of the cable / for remote signaling contacts | 7 mm |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35.0 |
| response value of the surge voltage / at 6 kV / at (1.2/50) µs | |
| ● for finely stranded conductor / for remote signaling contacts | 0.14 ... 1.5 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| operating voltage / of the remote signaling contacts / according to UL | 125 V |
| Maximum Continuous Operating Voltage (MCOV) / between L and Ground (GND) | 528 V |
| Maximum Continuous Operating Voltage (MCOV) / between N and Ground (GND) | 264 V |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-(2H-benzotriazol-2... CAS-No. 25973-55-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-(2H-benzotriazol-2-yl)-4,6-ditertpentylphenol (UV-328)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2,4-di-tert-butyl-6-... CAS-No. 3864-99-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2,4-di-tert-butyl-6-(5-chlorobenzotriazol-2-yl)phenol (UV-327)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| vibrational acceleration / at 5 Hz ... 500 Hz / limited to 2,5 h / per axis | 5 gn |
| operational current / of the remote signaling contacts / at AC / according to UL | 1 A |
| AWG number / as coded connectable conductor cross section / according to UL / maximum | 2 |
| AWG number / as coded connectable conductor cross section / according to UL / minimum | 12 |
| AWG number / as coded connectable conductor cross section / for remote signaling contacts / maximum | 16 |
| AWG number / as coded connectable conductor cross section / for remote signaling contacts / minimum | 28 |
| AWG number / as coded connectable conductor cross section / for remote signaling contacts / according to UL / maximum | 14 |
| AWG number / as coded connectable conductor cross section / for remote signaling contacts / according to UL / minimum | 30 |
| Ambient temperature / during operation / minimum permissible ... ambient temperature / during operation / maximum permissible | -40 °C ... 80 °C |
Product Description
Lightning current discharger, requirement class B, type 1, class I, 2 poles, TT and TN-S networks, 100 kA, 350 VAC. Cancelations and returns limited. Consult conditions.
