5SB431

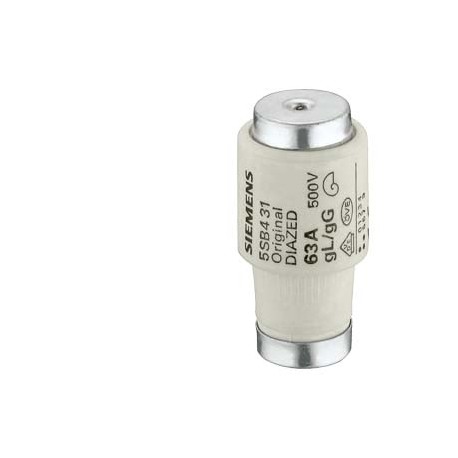

5SB431 SIEMENS DIAZED fuse link 500 V for cable and line protection gG, size DIII, E33, 63A
$0.00USD
3487 in stock
Key Specifications
:Value
EAN:4001869021317
UPC:754554214634
Notes:Product is no longer availableSucessor:Successor type with reduced DC-voltage: 5SB4311If you need assistance please contact our local Siemens office
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4001869021317 |
| UPC | 754554214634 |
| Notes | Product is no longer availableSucessor:Successor type with reduced DC-voltage: 5SB4311If you need assistance please contact our local Siemens office |
| ● at DC | 500 V |
| Group Code | P310 |
| net weight | 54 g |
| Price Group | 13I |
| ● maximum | 40 °C |
| ● minimum | -5 °C |
| Metal Factor | L-P----- |
| Product Group | 5535 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361050 |
| Power loss [W] | 6.9 W |
| Product family | Not available |
| Supply voltage | |
| Net Weight (kg) | 0,054 Kg |
| Country of origin | Slovenia |
| mounting position | Any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| PLM Effective Date | Product discontinued since: 31.05.2020 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Ambient temperature | |
| Packaging Dimension | 29,00 x 140,00 x 51,00 |
| Product Description | DIAZED fuse link 500 V for cable and line protection gG, size DIII, E33, 63A |
| Product designation | DIAZED fuse |
| Protection class IP | IP20, with connected conductors |
| product description | Using screw adapter or adapter sleeves |
| Design of the product | For cable and line protection |
| Colour code (EF000931) | Copper |
| Environmental category | Up to 45°C at 95 % rel. humidity |
| Minimum order quantity | 25 |
| Design of the fuse link | DIAZED fuse link |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| General Product Approval | Declaration of Conformity |
| Rated current (EF000227) | 63 |
| Rated voltage (EF000228) | 500 |
| circuit-breaker / Design | 5SB4 |
| Export Control Regulations | ECCN : N / AL : N |
| Switching capacity current | |
| Environmental Confirmations | |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Construction size (EF002566) | DIII |
| Package size unit of measure | MM |
| Color coding of the fuse link | copper |
| Tripping characteristic class | Other |
| Product Dimensions (W x L x H) | Not available |
| Utilization category (EF002572) | gL/gG (cable protection/equipment protection) |
| Operating class of the fuse link | gG |
| Diken-export / Let-through energy | DE_5SB_DIII_500_gG_63 |
| Release characteristic (EF000889) | Other |
| Diken-export / Let-through current | DS_5SB_DIII_500_gG_63 |
| Ambient temperature / during storage | Air humidity 90% at 20 °C |
| Article Number (Market Facing Number) | 5SB431 |
| ● acc. to IEC 60947-2 / rated value | 50 kA |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating current / at AC / rated value | 63 A |
| ● Reference code / acc. to DIN EN 81346-2 | F |
| ● reference code / acc. to DIN EN 61346-2 | F |
| Size of fuse system / acc. to DIN EN 60269-1 | DIII |
| ● at DC / acc. to IEC 60947-2 / rated value | 8 kA |
| Tripping residual / rated value / derated current / at 40 Cel | 59.85 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.06.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 6.9 W |
| General Product ApprovalDeclaration of ConformityTest CertificatesType Test Certificates/Test ReportSpecial Test CertificateotherEnvironmental Confirmations | General Product Approval |
