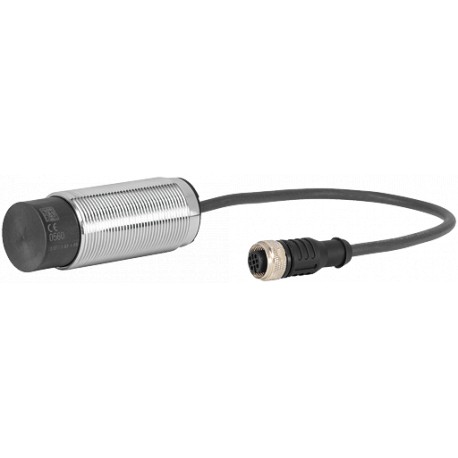

59451 MURRELEKTRONIK Inductive coupler IO-Link V1.1 secondary cable with female M12 M30
$0.00USD
4934 in stock
Key Specifications
EAN:4048879678315
eClass:27242604
IO-Link:M12 (female) 4-pole, A-coded
Weight::0.234 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879678315 |
| eClass | 27242604 |
| IO-Link | M12 (female) 4-pole, A-coded |
| Weight: | 0.234 kg |
| Art.No.: | 59451 |
| Labeling | Laser labelled |
| Rotation | 1 250 rpm |
| Port Class | A |
| Protection | IP67/IP68 |
| Standby time | 160 ms |
| Specification | IO-Link V1.1 |
| Output current | 500 mA |
| Packaging unit | 1 |
| Highest current | 2.4 A (0.1 ms); 10 A (0.02 ms) |
| Operating modes | COM2 (38.4 kBit/s) |
| Nominal distance | 0...7 mm (prim./sec.) |
| Operating voltage | 24 V DC ±10% |
| Temperature range | -20...+55 °C |
| country of origin | CZ |
| Diagnostic via LED | yes |
| Material (housing) | Brass, chrome plated |
| Communication status | via LED |
| Start-/coupling time | 10 ms |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 30×30×76.4 mm |
| Standby power (coupled) | 4 W |
| Short-circuit protection | yes |
| Standby power (uncoupled) | 1 W |
| Invers-polarity protection | yes |
