In Stock Hot Product
57221

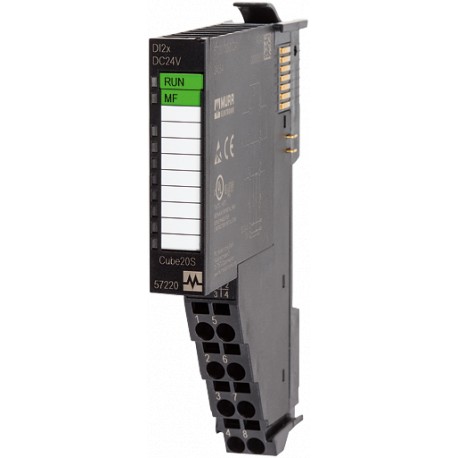

57221 MURRELEKTRONIK CUBE20S DIGITAL INPUT MODULE DI2
$0.00USD
3269 in stock
Key Specifications
EAN:4048879423236
Type:PNP (EN 61131-2)
eClass:27242604
Weight::0.069 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879423236 |
| Type | PNP (EN 61131-2) |
| eClass | 27242604 |
| Weight: | 0.069 kg |
| Art.No.: | 57221 |
| Connection | Spring clamp plug-in terminals: max. 1.5 mm² (AWG 16) |
| Protection | IP20 |
| Input filter | configurable 2 µs...3 ms |
| Module supply | via system connection |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Sensor supply US | 24 V DC (EN 61131-2), max. 500 mA per module |
| Temperature range | 0...+60 °C (storage temperature -20...+70 °C) |
| country of origin | TH |
| Diagnostic via BUS | per module |
| Diagnostic via LED | per module and channel |
| Galvanic isolation | 500 V DC between inputs and internal communication |
| Current consumption | max. 95 mA |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 109×12.9×76.5 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | no |
| Short-circuit and overload | yes |
Product Description
CUBE20S DIGITAL INPUT MODULE DI2 2 x 24 V DC adjustable input filter
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
