In Stock Hot Product
56968

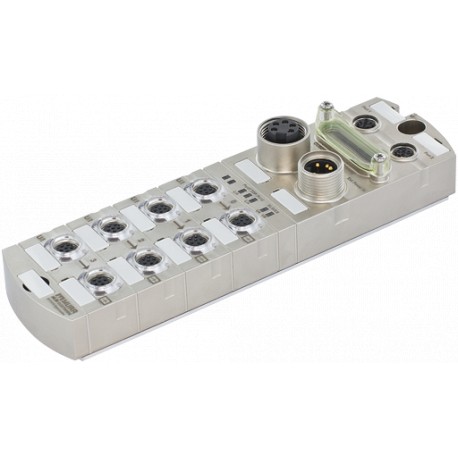

56968 MURRELEKTRONIK Cube67 Diagnostic Gateway
$0.00USD
4956 in stock
Key Specifications
EAN:4048879652216
Supply:2 × 7/8" (male/female), 5-pole
eClass:27242608
Weight::0.99 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879652216 |
| Supply | 2 × 7/8" (male/female), 5-pole |
| eClass | 27242608 |
| Weight: | 0.99 kg |
| Art.No.: | 56968 |
| Fieldbus | 2 × M12 (female), D-coded |
| Protection | IP67 |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Operating voltage | 24 V DC ±25% |
| Temperature range | 0...+55 °C (storage temperature -25...+70 °C) |
| country of origin | DE |
| Current consumption | max. 200 mA |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 42×63×225 mm |
| Over voltage protection | yes |
| Cube67 system connection | yes |
| Internal system connection | 8 × M12 (female), 6-pole |
| Reverse polarity protection module | yes |
Product Description
Cube67 Diagnostic GatewayDiagnosis made easy, Simple system overview
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
