In Stock Hot Product
56948
56948 MURRELEKTRONIK CUBE67 ACCESSORIES
$0.00USD
4743 in stock
Key Specifications
EAN:4048879047890
eClass:27242692
Weight::0.15 kg
Art.No.::56948
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879047890 |
| eClass | 27242692 |
| Weight: | 0.15 kg |
| Art.No.: | 56948 |
| Connection | Female M12, 6-pole, Han-Brid®, 6-pole |
| Protection | IP65 |
| Mating cycles | min. 500 |
| Packaging unit | 1 |
| Mounting method | Flange, hole spacing 30 mm, bore 3.3 mm |
| Operating current | max. 4 A |
| Operating voltage | 24 V DC |
| Temperature range | -40...+85 °C |
| country of origin | DE |
| customs tariff number | 85369010 |
| Dimensions H × W × D | 80.5×40×40 mm |
Product Description

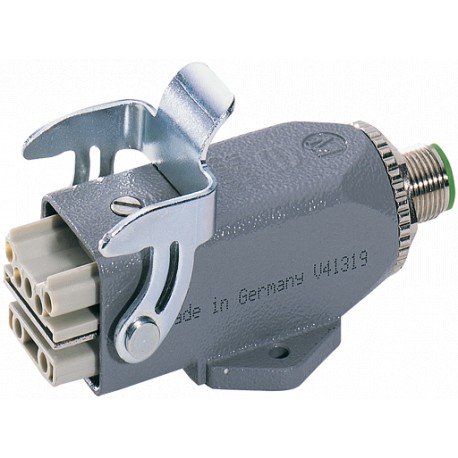

CUBE67 ACCESSORIESSystem interface connector
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
