In Stock Hot Product
56920

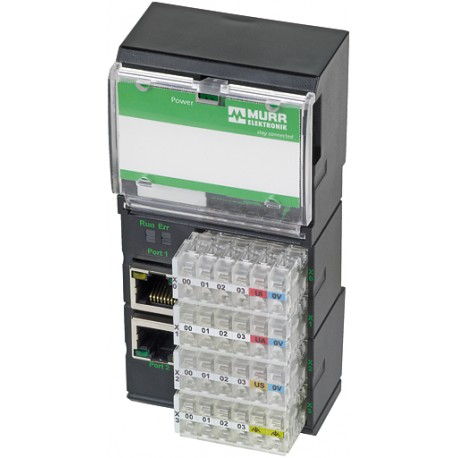

56920 MURRELEKTRONIK IMPACT20 PROFINET IO, DIGITAL INPUT MODULE
$0.00USD
3549 in stock
Key Specifications
EAN:4048879047951
Type:for 3-wire sensors or mechanical switches, PNP
eClass:27242604
Weight::0.19 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879047951 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| eClass | 27242604 |
| Weight: | 0.19 kg |
| Art.No.: | 56920 |
| Fieldbus | Ethernet 10/100 Mbit/s; 2 × RJ45 (female) |
| I/O ports | 18 × spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A) |
| Addressing | DCP |
| Protection | IP20 |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable (EN 60715) |
| Sensor supply US | 24 V DC (EN 61131-2), max. 700 mA per module, short-circuit and overload protected |
| Operating voltage | 24 V DC (EN 61131-2) |
| Temperature range | 0...+55 °C (storage temperature -20...+70 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module |
| Diagnostic via LED | per module |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 117×56×47 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | 6 × spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A) |
Product Description
IMPACT20 PROFINET IO, DIGITAL INPUT MODULE16 digital inputs
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
