In Stock Hot Product
5676660

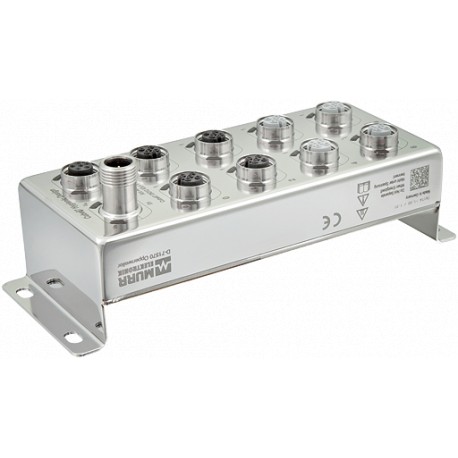

5676660 MURRELEKTRONIK CUBE67+ Hygienic Design I/O EXTENSION MODULE
$0.00USD
3683 in stock
Key Specifications
EAN:4048879697316
Type:for 3-wire sensors or mechanical switches, PNP
PIN 2:Input/Output/Diagnostic
PIN 4:Input/Output (port 0...3); IO-Link Master (port 4...7)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879697316 |
| Type | for 3-wire sensors or mechanical switches, PNP |
| PIN 2 | Input/Output/Diagnostic |
| PIN 4 | Input/Output (port 0...3); IO-Link Master (port 4...7) |
| eClass | 27242604 |
| IO-Link | 4 × Master |
| Weight: | 0.38 kg |
| Art.No.: | 5676660 |
| Fieldbus | via internal system connection |
| I/O ports | M12 (female) 5-pole, A-coded |
| Lamp load | 30 W |
| Port Class | Class A + B (not galvanically separated) |
| Protection | IP69K |
| LED display | US: sensor supply (green: OK); IOL: (green: OK); UA: actuator supply (green: OK) |
| Input filter | 1 ms |
| Specification | IO-Link Master V1.12 |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Operating modes | COM1; COM2; COM3 (automatic) |
| Actuator warning | per channel via LED and BUS |
| Compatible with: | 56521; 56526; 56535 |
| Sensor supply US | 24 V DC (EN 61131-2), max. 200 mA (port 0...3); max. 700 mA (port 4...7) |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), via system connection (max. 4 A) |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Current consumption | max. 100 mA |
| Transfer parameters | 32 Byte (per IO-Link port) |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Dimensions H × W × D | 126×30×34.5 mm |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 1.6 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | via internal system connection (max. 2×4 A) |
Product Description
CUBE67+ Hygienic Design I/O EXTENSION MODULE12 multif. channels + 4 IO-Link master V1.1
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
