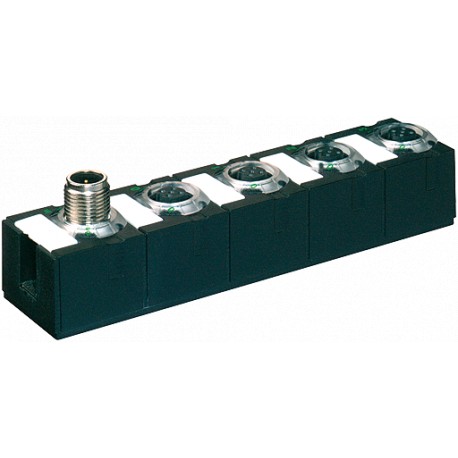

56740 MURRELEKTRONIK CUBE67 I/O COMPACT MODULE 4 analog inputs (RTD)
$0.00USD
4947 in stock
Key Specifications
EAN:4048879048217
eClass:27242601
Accuracy:max. ±0.5% (of range limit)
Fieldbus:via internal system connection
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879048217 |
| eClass | 27242601 |
| Accuracy | max. ±0.5% (of range limit) |
| Fieldbus | via internal system connection |
| I/O ports | M12 (female) 5-pole, A-coded |
| Connection | 2-, 3-, 4-wire technology |
| Protection | IP67 |
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
| Sensor type | Pt100, 200, 500, 1000; Ni100, 120, 200, 500, 1000; R 0...3000 Ω |
| Accuracy (Ni) | max. ±1% (of range limit) |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Actuator warning | per channel via LED and BUS |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| country of origin | DE |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Dimensions H×W×D | 126×30×34.5 mm |
| Current consumption | max. 50 mA |
| Resolution (analog) | 15 Bit + sign |
| Communication status | via LED |
| customs tariff number | 85389099 |
| Monitoring - no voltage | yes |
| Conversion time (analog) | approx. 58 ms per channel |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | via internal system connection (max. 2× 4 A) |
| Wire break upper/lower limit overload | per channel via LED and BUS |
Product Description
CUBE67 I/O COMPACT MODULE
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
