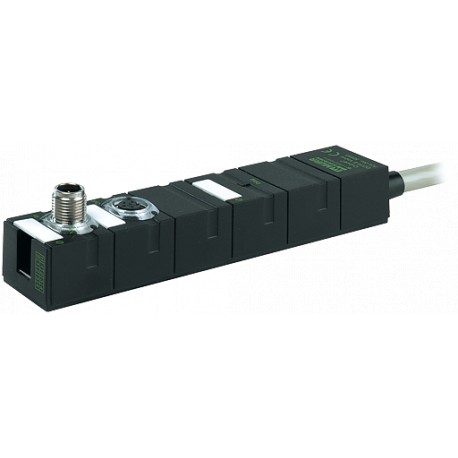

5665104 MURRELEKTRONIK Cube67 Valve-Interface, I/O Extension Module DO16, Open-End, 1,5m
$0.00USD
3380 in stock
Key Specifications
EAN:4048879045230
eClass:27242604
Fieldbus:via internal system connection
I/O ports:Open cable (0.5 m) 50 mA
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879045230 |
| eClass | 27242604 |
| Fieldbus | via internal system connection |
| I/O ports | Open cable (0.5 m) 50 mA |
| Protection | IP67 |
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Actuator warning | per channel via BUS |
| Material (jacket) | PVC |
| Temperature range | 0...+55 °C (storage temperature -20...+75 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), via system connection (max. 4 A) |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module |
| Dimensions H×W×D | 150×30×34.5 mm |
| Current consumption | max. 50 mA |
| Communication status | via LED |
| No./diameter of wires | 18× 0.25 mm² |
| customs tariff number | 85444290 |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Sensor-system/actuator supply | via internal system connection (max. 2× 4 A) |
Product Description
Cube67 Valve-Interface, I/O Extension Module
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
