5665002

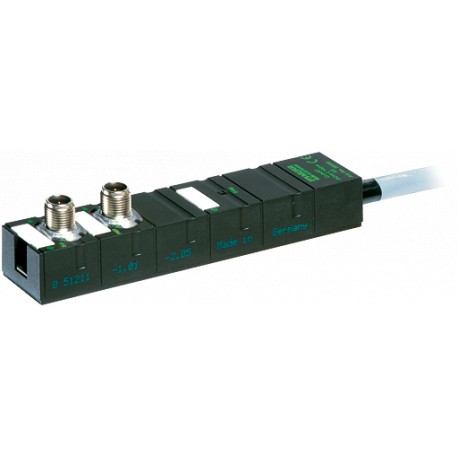

5665002 MURRELEKTRONIK Cube67 Valve-Interface, Compact Module DO16, SMC SV/VQ, Sub-D 25 pol., 0,6m, 4x U Act.
$0.00USD
4861 in stock
Key Specifications
EAN:4048879306218
eClass:27242604
Fieldbus:via internal system connection
I/O ports:SMC - Series SV/VQ
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879306218 |
| eClass | 27242604 |
| Fieldbus | via internal system connection |
| I/O ports | SMC - Series SV/VQ |
| Protection | IP67 |
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
| Cable Length | 0.5 m |
| Packaging unit | 1 |
| Mounting method | 2-hole screw mounting |
| Actuator warning | per channel via BUS |
| Material (jacket) | PVC, cross-link safe |
| Temperature range | 0...+55 °C (storage temperature -20...+70 °C) |
| country of origin | DE |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 4× 2 A |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module |
| Dimensions H×W×D | 150×30×34.5 mm |
| Current consumption | max. 50 mA |
| Communication status | via LED |
| No./diameter of wires | 4× 4× 0.14 mm² |
| customs tariff number | 85444290 |
| Monitoring - no voltage | yes |
| Monitoring - under voltage | yes |
| Short-circuit and overload | yes |
| Switching current per output | max. 0.5 A (short-circuit and overload protected) |
| Sensor-system/actuator supply | via internal system connection (max. 1× 4 A) / actuators via external cable (max. 4× 2 A) |
Product Description
Cube67 Valve-Interface, Compact Module
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
